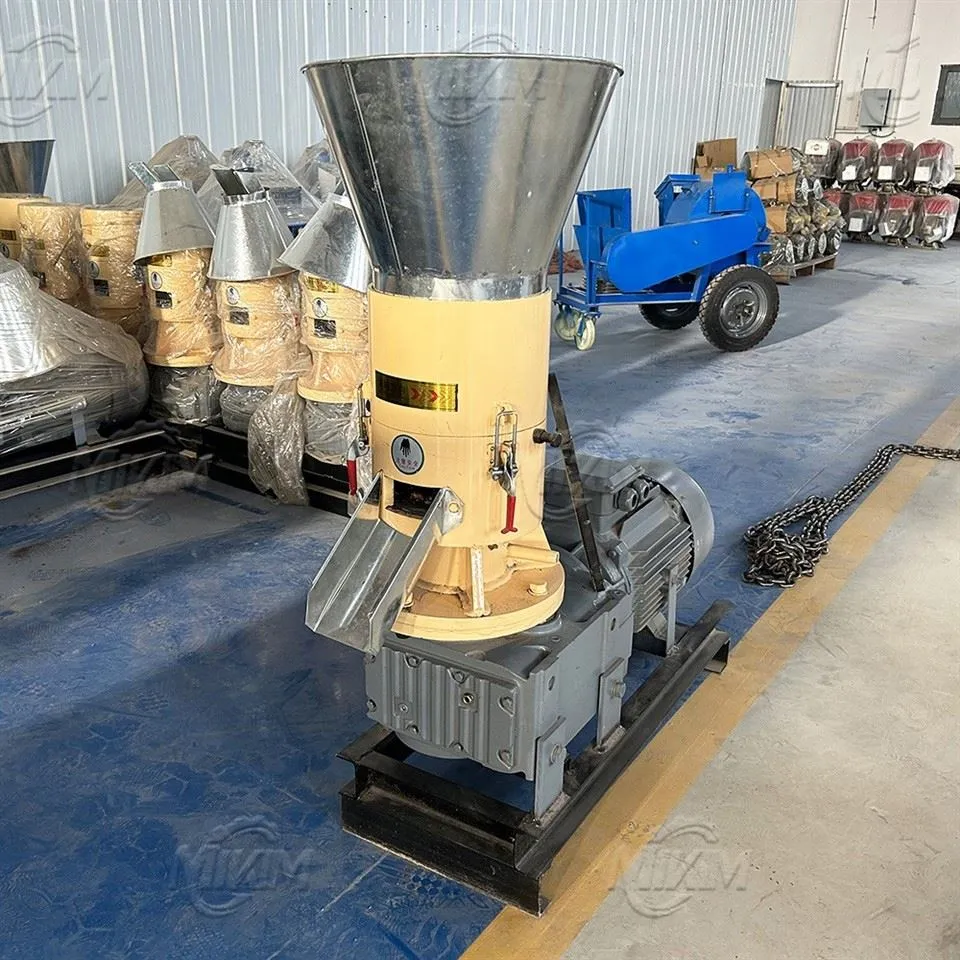

High Productivity Mini Wood Pellet Machine For Home Heating Wood Sawdust Grass Rice Husk
A wood fuel pellet making machine is a kind of biomass energy pretreatment equipment.Through pretreatment and processing, it is solidified and formed into high-density pellet fuel. The wood fuel pellet making machine is divided into flat mold biomass pellet machine and ring mold biomass pellet machine.
Features
Products Description
Details:
1. The main shaft is thickened by 1596, and a new high-rigidity load-bearing structure is adopted to improve load-bearing capacity and reduce the failure rate of pellet machine.
2.Product Testing: Three-coordinate detector, gear monitoring center, spectrometer,metallographic microscope, high-precision hardness tester, to ensure that each accessory meets high-precision and high-hardness assembly standards.
3. Laser Cutting: The cutting surface of the laser cutting machine is smooth: the cutting surface has no burrs, and the surface roughness of the incision is generally controlled within Ra 6.5, it adopts computer programming and modular production and
installation.
Advantages of the Sawdust Pellet maker Machine
- High Efficiency and Low Energy Consumption – The flat die design allows continuous operation with high compression ratio and excellent pellet forming rate.
- Wide Range of Raw Materials – Capable of processing wood waste, crop straw, husks, grass, and feed materials.
- Durable Structure – Made of high-quality alloy steel for long service life and reliable performance.
- Easy Operation and Maintenance – Simple design and user-friendly controls for convenient use.
- Compact and Portable Design – Suitable for home use, small farms, and mobile pellet production lines.

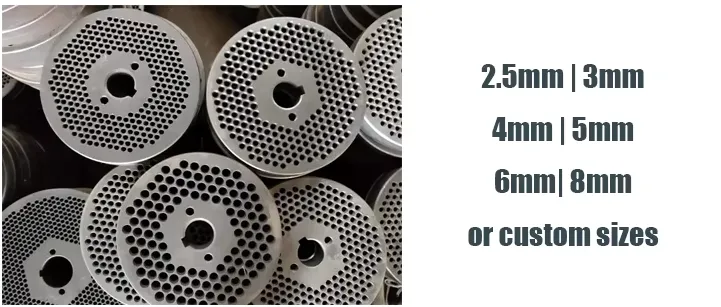

- Adjustable Pellet Size – Different die hole sizes available (2.5–10 mm) to meet various production needs.
- Environmentally Friendly – Converts agricultural residues into renewable biomass fuel with low carbon emissions.
Product Parameters
|
Model No. |
Capacity(kg/h) |
Power(kw) |
Pellet Size(mm) |
Weight(t) |
Dimension(mm) |
|
RKL-250 |
100-200 |
15 |
4-6 |
0.5 |
1400*600*1000 |
|
RKL-300 |
150-250 |
22 |
4-6 |
0.65 |
1760*670*1600 |
|
RKL-350 |
100-300 |
30 |
4-8 |
0.76 |
1860*670*1600 |
|
RKL-400 |
300-600 |
37 |
4.5-10 |
2.2 |
1900*850*1750 |
|
RKL-450 |
500-800 |
55 |
4.5-10 |
4.3 |
2300*1100*1900 |
|
RKL-550 |
1000-1500 |
90 |
4.5-12 |
5.5 |
2350*1100*2050 |
Applications of the Sawdust Pellet making Machine
The density of raw materials is generally about 0.6-0.8, and the particle density after molding is greater than 1.1, which is extreriely convenient for transportation and storage, and at the same time,its combustion performance is greatly improved, reducing human dependence on petrochemical energy and atmospheric emissions.
1.Pellet stove pellet machine is widely used for maize straw, peanut shell, rice husk, corncob, cotton seed hull, wheat-straw, sunflower seed shell, sawdust, cotton stalk, weeds, etc.
2.This equipment is also suitable for raw materials which are difficult to form with low bonding ratio.
3.Furthermore, organic bacterial manure, organic fertilizer and compound fertilizer are applicable to pelletize under low temperature.
If your pellets develop cracks during production, click to view the full troubleshooting guide.
FAQ
Q1:What is the price of the Flat die sawdust pellet mill?
A1:It costs approximately US$1,500.00 - 10,000.00
Q2:: How long is the warranty?
A2: We guarantee 18 months after-sales service. If there are any questions when using, calling or mailing us, we will advise on technically sound methods. Free accessories will be provided if needed.
Q3: Can I have my own customized products?
A3: Yes, your customized requirements for color, logo, design, packaging, carton marking, etc. are welcome.
Q4: How to get samples and how long does it take?
A4: Example strategies differ from project to project. Please contact us for detailed information.
Q5: What is the minimum order quantity?
A5: MOQ is different for different items, please contact us to confirm.
Q6: How do I pay for my purchase order?
A6: T/T, L/C at sight, Western Union, MoneyGram.
Q7: What are your payment terms?
A7: For regular order, T/T 30% as deposit and 70% before shipment. Before you pay the balance, we will show you photos of the products and packaging.
