The wood stove pellet maker machine is designed for compressing agricultural and forestry biomass materials into high-density fuel pellets. This machine can process pine needles, sawdust, straw, rice husk, wood shavings, and other biomass waste into durable fuel pellets suitable for heating systems, biomass boilers, farms, and small industrial energy projects.



With compact structure, low investment cost, easy maintenance, and stable pelletizing performance, the flat die biomass pellet machine is widely used by small biomass fuel plants, farms, renewable energy businesses, and agricultural waste recycling projects.





---



Why Biomass Fuel Pellets Are Becoming More Popular?



As traditional fuel costs continue to rise and environmental regulations become stricter, more businesses and farms are looking for renewable energy alternatives. Agricultural and forestry waste materials such as straw, sawdust, and pine needles are often burned or discarded, creating pollution and wasting valuable biomass resources.

Biomass fuel pellets provide an environmentally friendly solution by converting waste materials into clean-burning renewable fuel.

Compared with loose biomass waste, biomass pellets offer:

• Higher fuel density
• Easier transportation and storage
• Lower smoke emissions
• Higher combustion efficiency
• More stable burning performance

This makes biomass pellet production an attractive investment opportunity for farms, biomass recycling companies, and small fuel pellet factories.



---



Suitable Raw Materials

This Flat die biomass fuel Pellet making Machine is suitable for processing a wide range of agricultural and forestry materials.

Supported Raw Materials

• Pine needles
• Sawdust
• Straw
• Rice husk
• Wood shavings
• Peanut shells
• Corn stalks
• Bamboo powder
• Palm fiber
• Grass powder
• Coconut shell powder
• Forestry waste
• Crop residues

For better pelletizing performance, oversized materials should be crushed before entering the flat model biomass granulator.





Recommended Moisture Content

To ensure strong pellet formation and smooth machine operation, the recommended raw material moisture content is typically between 10%–15%.

If the moisture is too high, pellets may become loose or cracked. If the material is too dry, pellet forming efficiency may decrease.





---



Working Principle of the flat die biomass pellet making machine

The biomass raw materials enter the feeding hopper and move into the pelletizing chamber. Inside the machine, the press rollers continuously compress the materials against the rotating flat die under high pressure.

During compression, friction generates heat, which softens the natural lignin inside the biomass materials. The softened lignin acts as a natural binder, helping the material form dense pellets without the need for chemical adhesives.

The compressed material is extruded through the die holes and cut into uniform pellet lengths before being discharged from the outlet.



Pelletizing Process

Raw material feeding → Roller compression → Flat die extrusion → High-pressure forming → Pellet cutting → Finished pellet discharge





---

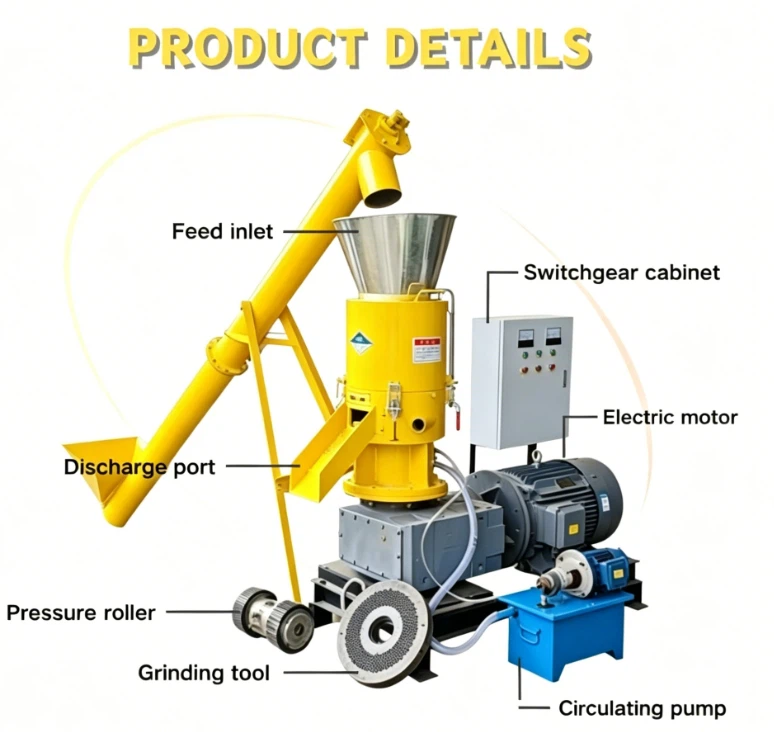

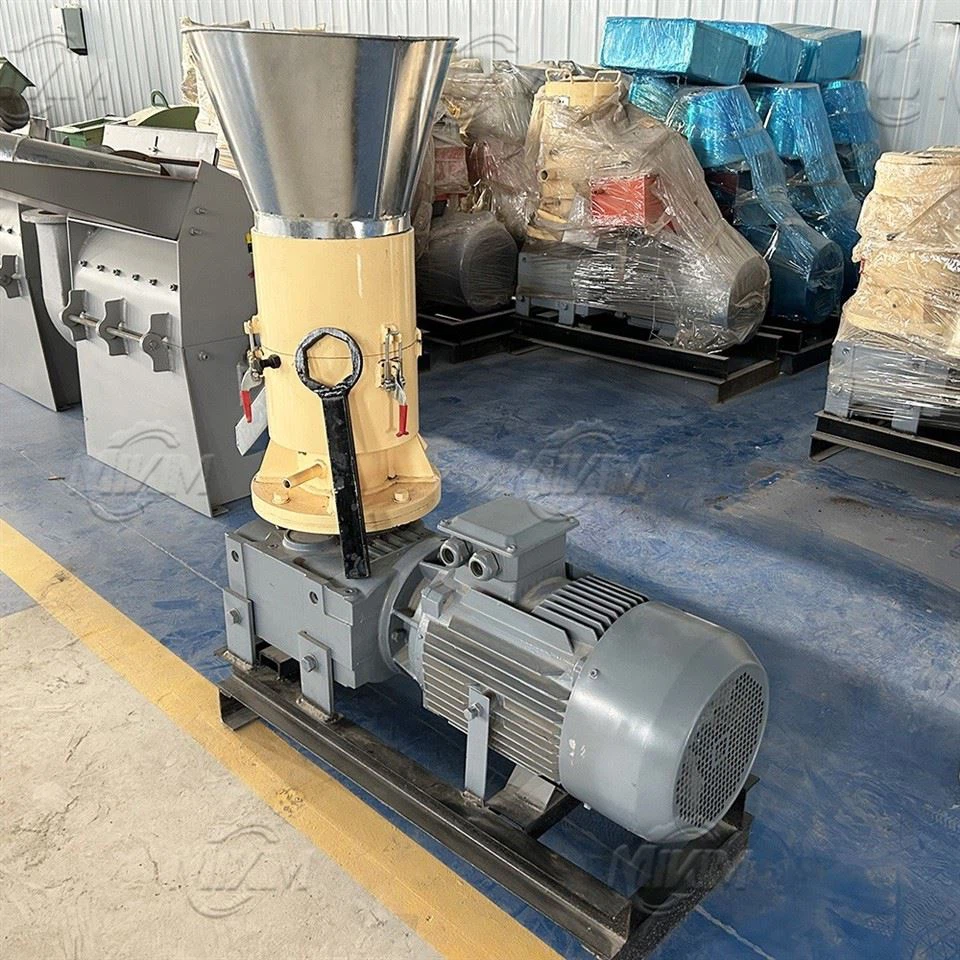

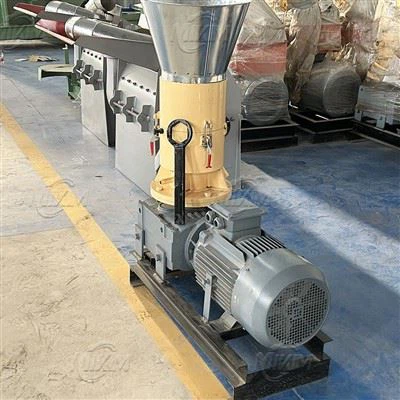

Main Structure of the Wood Chip Pellet maker Machine

1. Feeding Hopper

The feeding hopper allows biomass materials to enter the machine evenly, helping maintain stable pellet production.

2. Flat Die

The flat die is one of the core components of the machine. It determines pellet diameter and affects pellet density and forming quality.

3. Press Rollers

The press rollers apply strong pressure to compress raw materials into solid biomass pellets.

4. Main Motor

The powerful motor provides stable operation and ensures continuous pellet production.

5. Transmission System

The transmission system delivers power efficiently and improves machine stability during long working hours.

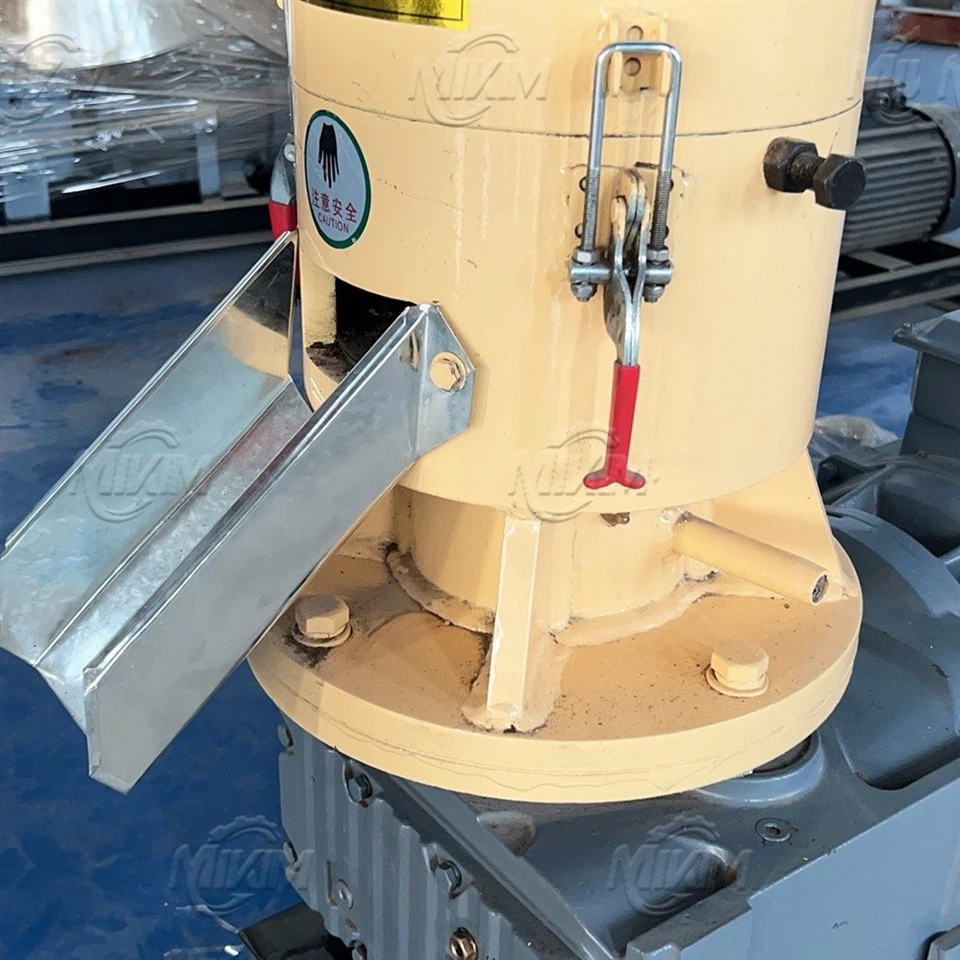

6. Pellet Outlet

Finished pellets are discharged smoothly from the outlet for collection or further cooling and packaging.

7. Heavy-Duty Machine Frame

The reinforced machine structure improves operational stability and extends machine service life.





---



Advantages of the Flat Die biomass sawdust pellet machine

Wide Raw Material Compatibility

Suitable for various agricultural and forestry biomass materials.



Low Investment Cost

An ideal solution for small biomass pellet production businesses and startup projects.



Compact Structure

Requires less factory space and is suitable for farms and small workshops.



Easy Operation

Simple operating system makes the machine easy to use and maintain.



Energy Efficient

Designed for stable pellet production with lower energy consumption.



Strong Pellet Density

Produces durable biomass pellets with stable combustion performance.



Easy Maintenance

Flat die and rollers can be replaced conveniently, reducing maintenance downtime.





---



Applications of Biomass Fuel Pellets

The biomass fuel pellets produced by this machine can be widely used in different industries.

Applications Include

• Home heating fuel
• Biomass boiler fuel
• Farm heating systems
• Greenhouse heating
• Industrial combustion systems
• Biomass power plants
• Animal bedding pellets

Biomass fuel pellets are becoming an important renewable energy source in many countries due to their low emissions and sustainable fuel value.





---



Technical Parameters



Model No.	Capacity(kg/h)	Power(kw)	Pellet Size(mm)	Weight(t)	Dimension(mm)
RKL-250	100-200	15	4-6	0.5	1400*600*1000
RKL-300	150-250	22	4-6	0.65	1760*670*1600
RKL-350	100-300	30	4-8	0.76	1860*670*1600
RKL-400	300-600	37	4.5-10	2.2	1900*850*1750
RKL-450	500-800	55	4.5-10	4.3	2300*1100*1900
RKL-550	1000-1500	90	4.5-12	5.5	2350*1100*2050

Machine specifications can be customized according to customer requirements.



---

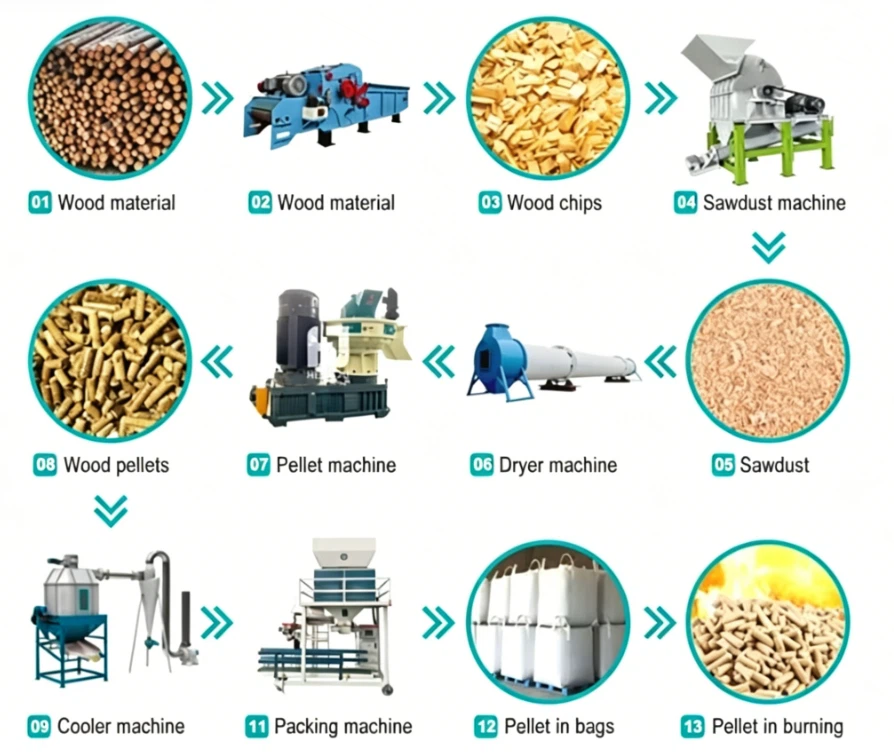

Recommended Complete Biomass Pellet Production Line



For customers who want larger production capacity and automated processing, we can also provide complete biomass pellet production solutions.

Optional Supporting Equipment

• Wood crusher machine
• Hammer mill
• Biomass dryer machine
• Screw conveyor
• Pellet cooling machine
• Screening machine
• Automatic packing machine

A complete production line can improve production efficiency and reduce labor costs.





---



Customer Production Cases

Pine Needle Pellet Production Project

A customer used pine needles and forestry waste materials to produce biomass fuel pellets for industrial boiler heating. After adjusting the moisture content and crushing size, the pellets achieved stable density and efficient combustion performance.

Straw Biomass Fuel Pellet Project

A farm customer used straw waste materials to produce heating fuel pellets for greenhouse heating applications, helping reduce fuel expenses and recycle agricultural waste.





---





Our Quality Control System

Quality is one of the most important factors in biomass pellet production equipment. Every machine is carefully inspected before delivery to ensure stable operation and long service life.

Our Quality Advantages

• Strict raw material selection for machine components
• Precision processing for key parts
• Stable motor configuration
• Durable flat die and roller system
• Factory testing before shipment

Continuous operation testing to ensure machine stability

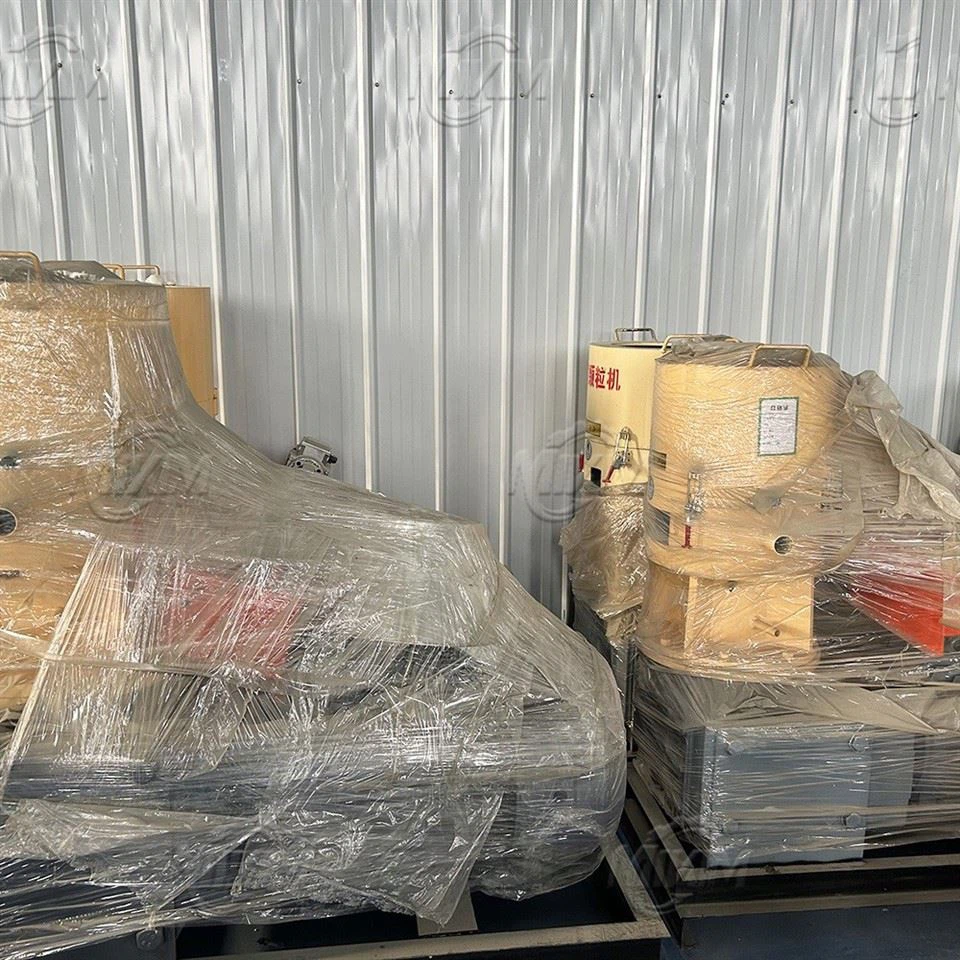

Before shipment, each machine undergoes performance testing to check:

• Machine running stability
• Pellet forming quality
• Motor performance
• Noise and vibration condition
• Production capacity performance

This helps customers reduce installation risks after receiving the equipment.

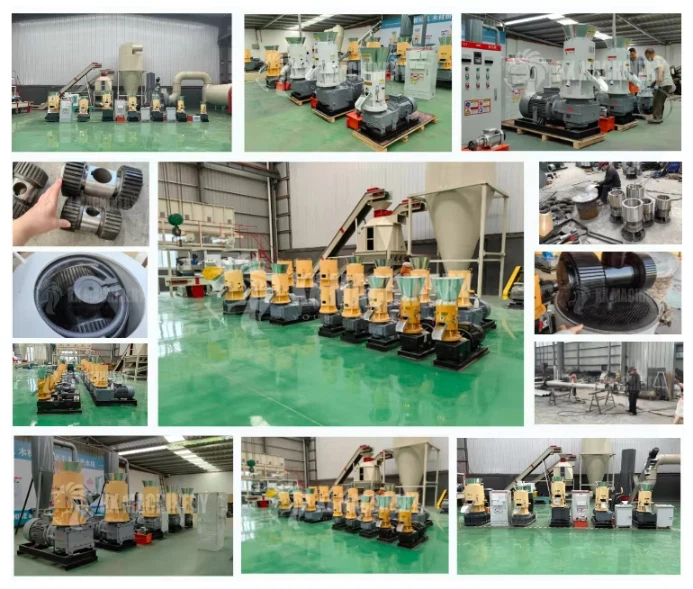

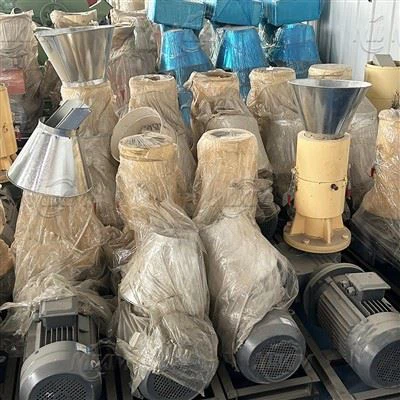

Biofuel Sawdust Pellet Machine: Factory Footage



I'm interested in this model



---



Professional After-Sales Service Support

We not only provide machines, but also complete technical support for our customers.

Our After-Sales Services Include

Installation guidance

• Operation training support
• Pellet production technical guidance
• Raw material analysis suggestions
• Machine maintenance support
• Spare parts supply
• Online troubleshooting assistance

If customers encounter production problems during operation, our technical team can provide support to help improve pellet quality and machine efficiency.



Spare Parts Support

We provide long-term spare parts support for key machine components including:

• Flat dies
• Rollers
• Bearings
• Belts
• Electrical components

This helps customers maintain stable long-term production.





---



FAQ

1. Can pine needles be used for biomass pellet production?

Yes. Pine needles can be processed into biomass fuel pellets after crushing and moisture adjustment.



2. Does the machine require chemical binders?

Normally no. Natural lignin inside the biomass material acts as a natural binder during high-pressure pelletizing.



3. What is the best moisture content for pellet production?

The recommended moisture content is generally between 10%–15%.



4. Can straw materials be pelletized?

Yes. Straw materials can be pelletized after crushing into suitable particle sizes.



5. What pellet sizes can this machine produce?

Common pellet sizes include 6mm, 8mm, and customized sizes depending on customer requirements.



---



Start Your Biomass Pellet Fuel Business Today

If you are looking for a cost-effective solution for converting agricultural and forestry waste into renewable biomass fuel pellets, this Small Pine Needles Sawdust Straw Fuel Flat Die Biomass Pellet Making Machine is an ideal choice.

Whether you are starting a small biomass fuel business, reducing farm waste, or building a renewable energy project, we can provide suitable pellet production solutions based on your raw materials and capacity requirements.

We Can Provide

• Machine model recommendations
• Free technical consultation
• Raw material analysis support
• Customized voltage options
• Complete production line solutions
• Professional after-sales service

Contact us now to get more information, machine videos, technical parameters, and customized biomass pellet production solutions. 🌿🔥⚙️
