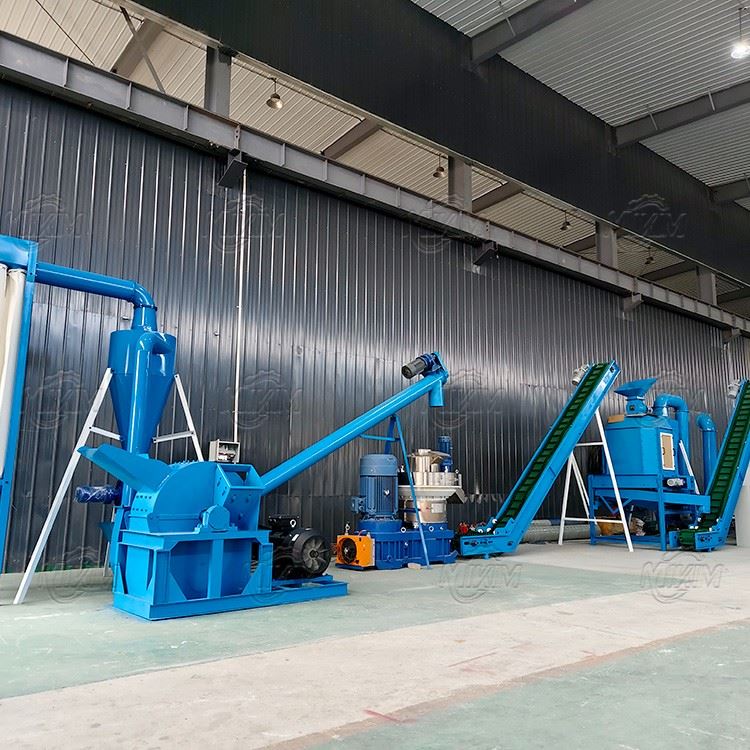

Indonesia Biomass Pellet Production Line | Tropical Climate-Resilient Design For Palm Shell, Coconut Shell & Rice Husk

1. Core Challenges of Wood Pellet Production in Indonesia's Tropical Climate
2. Full Tropical Humidity-Proof Solution: Storage System + Forced Drying System
2.1 Forced Drying System: Core Guarantee for Stable Production in Rainy Season
3. Core Equipment: MKLH Series Ring Die Wood Pellet Machine (Indonesia Customized Version)
3.1 Working Principle of ring die wood pellet making machine
3.2 Indonesia-Specific Optimization Design
3.3 Advantages of Ring Die Biomass Fuel Pellet making Machine
3.4 Structure Details of ring die wood chip granulator
3.5 Technical Specifications
4. Custom Pellet Solutions for Indonesia Local Raw Materials
4.1 Palm Kernel Shell (PKS) Pellet Solution
4.2 Coconut Shell Pellet & Briquette Solution
4.3 Rice Husk Pellet Solution
4.4 Recommended Mixed Raw Material Formulas
5. 3 Tailored Production Line Solutions for Different Scales & Budgets
5.1 Solution 1: Small Entry-Level Line (1–1.5 T/H)
5.2 Solution 2: Medium Standard Line (2–3 T/H)
5.3 Solution 3: Large Export-Oriented Line (3–5 T/H+)
6. Local Service & Verified Projects in Indonesia
6.1 Full After-Sales Service
6.2 Local Project Cases
7. FAQ
8. Our factory

1. Core Challenges of Wood Pellet Production in Indonesia's Tropical Climate

1. High moisture content causes forming failure



   Fresh local raw materials such as palm kernel shell, coconut shell and rice husk have a natural moisture content of 30%–60%. Natural drying is severely limited by rainy weather. Direct pelleting leads to low forming rate, loose pellets and high powder rate, failing to meet quality standards.



2. Severe mold loss during storage



   In high-temperature and high-humidity environments, undried raw materials develop mold, heat up and decay within 7–15 days of stacking, with a loss rate of up to 15%–30%. Moldy raw materials also increase ash content and reduce the calorific value of finished pellets.



3. Diverse raw materials, difficult process unification



   Palm kernel shell is hard and oily, coconut shell has long fibers, and rice husk is light and fluffy. General-purpose wood stove pellet maker machines cannot balance the forming effect of various local raw materials, resulting in large capacity fluctuations and fast die wear.







2. Full Tropical Humidity-Proof Solution: Storage System + Forced Drying System

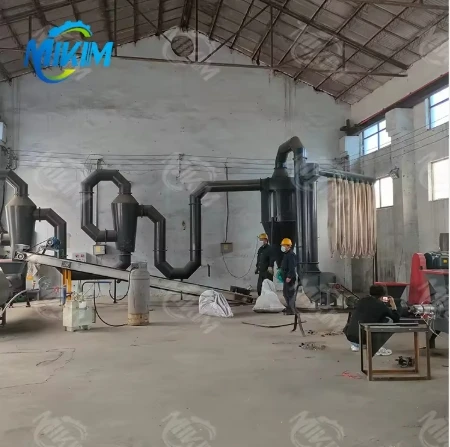

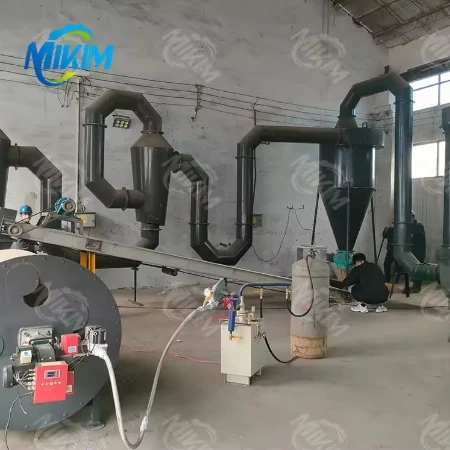

2.1 Forced Drying System: Core Guarantee for Stable Production in Rainy Season

• Suitable for drying materials of moisture 20-70%.
• Suitable for drying materials like sawdust, rice hull, milling wheat straw, corn stalks etc.
• Equipped with two fuel boilers, inlet, steel pipe, exhaust blower (fan), air lock and cyclone. Wet materials are input into the hopper.
• The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly. And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are discharged from the outlet with air lock.
• It reduces the moisture to 8-12%.

• Clients can change the angle of dryer base on the production field.





Product Parameters

3. Core Equipment: MKLH Series Ring Die Wood Pellet Machine (Indonesia Customized Version)

3.1 Working Principle of ring die wood pellet making machine

Make a FREE CONSULTATION

3.2 Indonesia-Specific Optimization Design

1. Upgraded electrical system
   • Adapted to Indonesia's 380V/415V 50Hz three-phase industrial power grid
   • Electrical cabinet equipped with dehumidification and heat dissipation devices, adapting to 90% high humidity and 40℃+ high temperature environment
   • Moisture-proof and corrosion-resistant components, suitable for coastal high-salt spray areas
2. Wear-resistant structure for hard raw materials
   • Ring die made of 6CrW2Si alloy steel with carburizing and quenching treatment, effective service life of 1600–2000 tons
   • Press roller shell made of 40-42CrMnTi with patented technology, service life of 800–1000 tons, specially adapted to hard palm kernel shell and coconut shell
   • Customizable compression ratio from 1:5 to 1:7.5 to match different local raw materials
3. High-temperature lubrication system
   • Circulating oil lubrication system, adapted to 24-hour continuous operation in tropical high-temperature environment
   • High-temperature special lubricating oil to ensure stable operation when ambient temperature is above 40℃







3.3 Advantages of Ring Die Biomass Fuel Pellet making Machine

• Strong raw material adaptability: No binder required, relying on natural lignin bonding. Suitable for wood sawdust, palm kernel shell, coconut shell, rice husk, straw and other biomass materials
• Precise roller gap adjustment: Adjust the spacing between press roller and ring die through top bolts to adapt to raw materials of different hardness
• High pellet density: Formed pellet density of 1.1–1.3 g/cm³, high calorific value, not easy to break, easy for storage and transportation
• Stable forming rate: Ring die + multi-roller structure provides high pressure, with sawdust forming rate ≥95% and low pulverization rate
• Optional stainless steel pelleting chamber: Customizable stainless steel shell for the pelleting chamber for better corrosion resistance in humid environments
• Optional Siemens motor: Configurable according to customer requirements for higher stability and durability

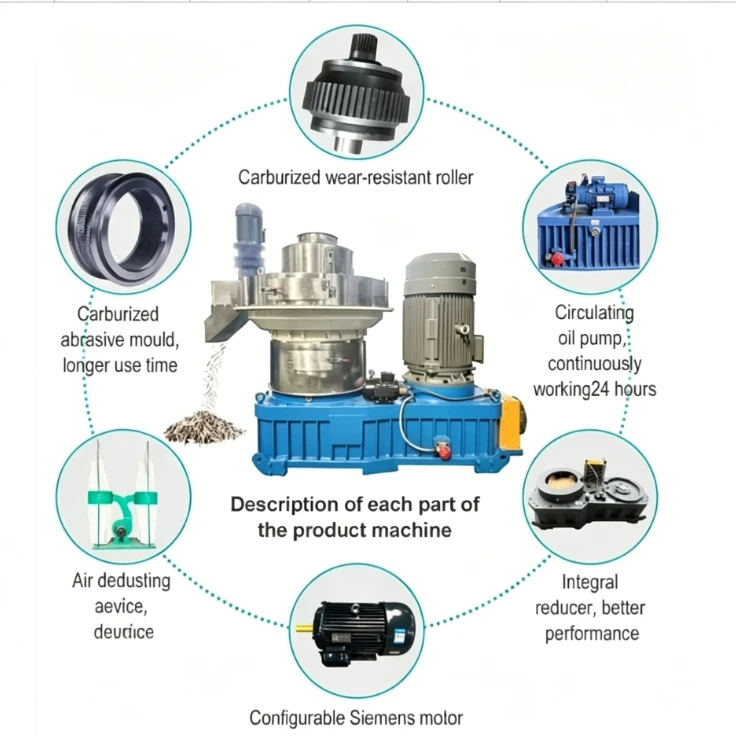

3.4 Structure Details of ring die wood chip granulator

1. Press roller: Core forming component with toothed surface to enhance material gripping, compacts raw materials into shape through rotational squeezing
2. Ring die: Fixed forming mold with adjustable gap with the roller, adapting to the physical properties and forming process requirements of different raw materials
3. Reducer: Thick cast iron housing + sound-absorbing structure for impact resistance; high torque output, smooth operation and low noise; excellent sealing to prevent dust and wood chips from entering; annual comprehensive cost 30% lower than ordinary reducers
4. Electrical control system: Centralized control of equipment start/stop, feeding speed and other operating parameters
5. Dust removal device: Integrated air dust removal device for a better working environment

3.5 Technical Specifications

4. Custom Pellet Solutions for Indonesia Local Raw Materials

4.1 Palm Kernel Shell (PKS) Pellet Solution

• Raw material features: Hard texture with natural oil, calorific value 4200–4600 Kcal/kg, natural moisture content 30%–45%, the most cost-effective local raw material
• Process flow: Shear crushing → hammer milling → drying → pelleting → cooling → screening → packaging

• Equipment configuration:

  • Crusher: Blade-type shear crusher, crushes raw PKS to below 20mm
  • Hammer mill: Grinds to 3–5mm optimal pelleting particle size
  • Dryer: Sawdust Pipe Dryer, dries moisture to 8%–12%
  • Pellet machine: MKLH series with 1:6–1:7 compression ratio ring die, reinforced roller bearing
• Applications: Industrial boiler fuel, power plant co-firing, export to Japan and South Korea

4.2 Coconut Shell Pellet & Briquette Solution

• Raw material features: Long fiber, strong winding property, high carbon content, calorific value 4300–4800 Kcal/kg, natural moisture 35%–50%
• Pellet solution: High-speed hammer mill to solve fiber winding problem; recommended ring die compression ratio 1:6.5–1:7.5
• High value-added option: Screw briquette machine to produce charcoal briquettes with higher profit margin, suitable for the export charcoal market

4.3 Rice Husk Pellet Solution

• Raw material features: Light and fluffy, easy to bridge during feeding, high ash content, calorific value 3200–3800 Kcal/kg, natural moisture 25%–40%
• Process optimization: Forced feeding structure to prevent bridging; wear-resistant ring die to reduce abrasion
• Usage recommendation: Mix with palm kernel shell or wood chips at a ratio of 30%–40% rice husk + 60%–70% palm kernel shell to improve pellet quality and reduce raw material cost
• Matching ring die compression ratio: 1:5–1:6

4.4 Recommended Mixed Raw Material Formulas

• General formula (balance of cost & quality): 60% palm kernel shell + 30% wood chips + 10% rice husk
• High cost-performance formula (local market): 50% palm kernel shell + 30% empty fruit bunch (EFB) + 20% coconut shell
• Premium export formula: 70% rubber wood + 30% palm kernel shell, low ash and high calorific value

5. 3 Tailored Production Line Solutions for Different Scales & Budgets

I am interested in this line

5.1 Solution 1: Small Entry-Level Line (1–1.5 T/H)

• Target users: Start-up investors, small fuel distributors, palm oil mills for self-use

• Core configuration:



  30KW hammer mill + 7.5×1.5×3m single-drum dryer + MKLH560 ring die pellet machine + counterflow cooler + basic screening equipment

• Suitable raw materials: Rice husk, wood chips, mixed palm kernel shell
• Advantages: Low investment threshold, small footprint, fast installation, suitable for testing the local market
• Moisture-proof configuration: Basic rainproof yard + simple warehouse dehumidification solution

5.2 Solution 2: Medium Standard Line (2–3 T/H)

• Target users: Medium processing plants, balancing local sales and inter-island export

• Core configuration:



  55KW hammer mill + 7.5×1.5×3m three-pass dryer + MKLH560A / MKLH700 pellet machine + counterflow cooler + automatic packaging machine

• Suitable raw materials: Full range of local raw materials, mainly palm kernel shell and coconut shell
• Advantages: Best cost-performance ratio, stable capacity, finished product quality reaches export grade, the most popular configuration in the Indonesian market
• Moisture-proof configuration: Standard three-level moisture-proof storage system

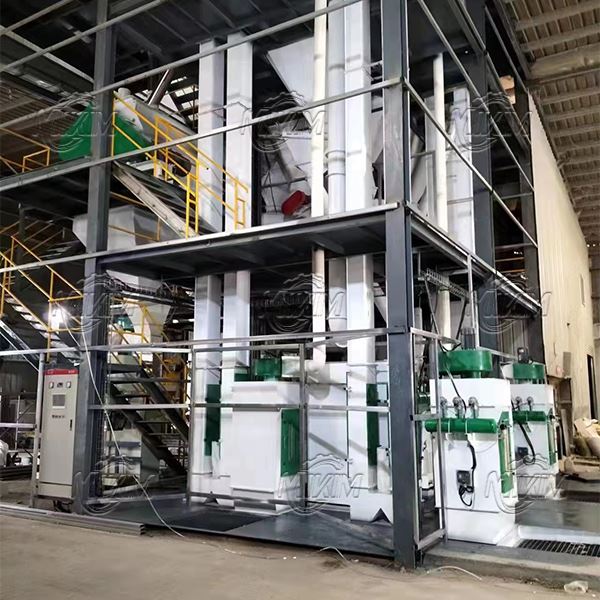

5.3 Solution 3: Large Export-Oriented Line (3–5 T/H+)

• Target users: Large energy enterprises, traders focusing on export orders

• Core configuration:



  75KW hammer mill + 13×1.5×3.5m three-pass dryer + + 2 sets of MKLH700 / 1 set of MKLH860A pellet machine + automatic packaging & stacking system

• Quality standard: Fully meets SNI 8021:2014 premium standard, compatible with ENplus and JIS certification
• Advantages: Strong scale effect, low unit production cost, high brand premium
• Moisture-proof configuration: Intelligent warehouse temperature & humidity control system + double drying line redundancy

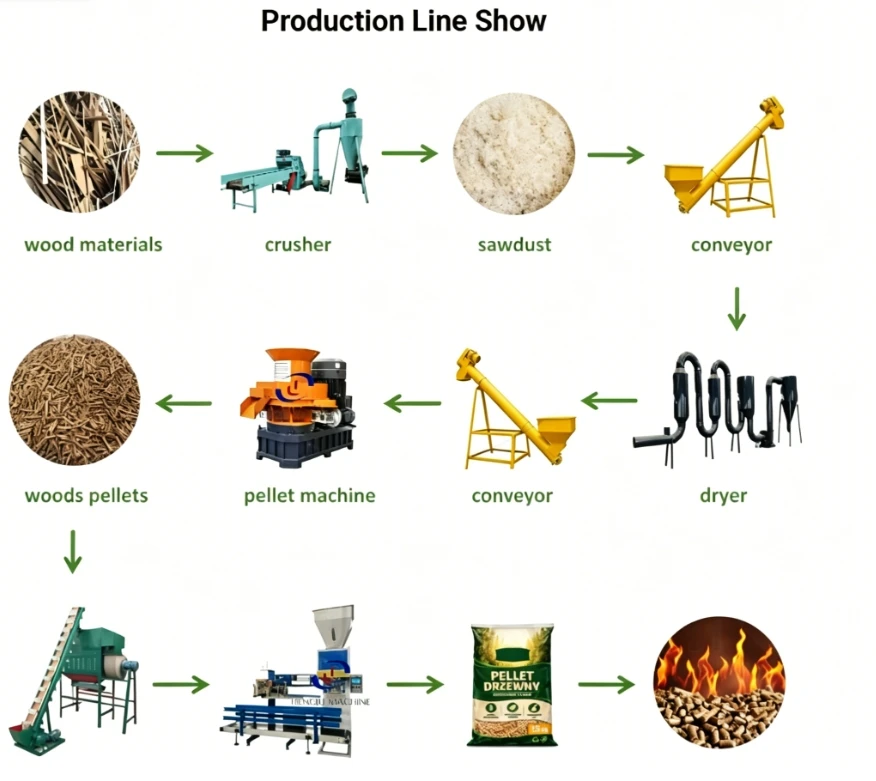

Standard Complete Production Process

6. Local Service & Verified Projects in Indonesia

6.1 Full After-Sales Service

• Delivery: Standard configuration ships in 30–45 days, customized configuration ships in 45–60 days
• Installation: Send engineers to the site for installation guidance, commissioning and operation training
• Warranty: 12 months whole machine warranty, 18 months core parts warranty, spare parts delivery to major Indonesian ports
• Process support: Free factory layout design, raw material formula optimization, finished product testing guidance

6.2 Local Project Cases

• Raw material: Palm kernel shell + EFB from palm oil mill, initial moisture 42%
• Configuration: 2 T/H medium line + three-pass dryer + three-level moisture-proof storage
• Operation result: Finished pellet moisture stable at 8%–10%, calorific value 4500 Kcal/kg, no production stop in rainy season, all products exported to Japan

• Raw material: Local rice husk mixed with wood processing waste
• Configuration: 1.5 T/H small line + single-drum dryer
• Operation result: Flexible mixing ratio, supplies to surrounding textile factory boilers, 45% fuel cost reduction after replacing diesel

7. FAQ

1. Q: Do I really need a Airflow Dryer for pellet production in Indonesia?



   A: Yes, a Airflow Dryer is mandatory for pellet production in Indonesia. The 4–6 month rainy season makes natural drying completely unreliable and causes 15%–30% raw material mold loss. A forced drying system ensures year-round stable production and keeps finished pellet moisture within the SNI 8021:2014 standard of ≤12%.



2. Q: Can your Ring die rice straw pellet maker machine process palm kernel shell, coconut shell and rice husk?



   A: Yes. Our MKLH series vertical ring die pellet machines can process all these local raw materials by replacing ring dies with different compression ratios and adjusting process parameters. We will customize the die according to your main raw material.



3. Q: What voltage do your machines support? Can they match the Indonesia power grid?



   A: Our machines are customized to adapt to Indonesia's 380V/415V 50Hz three-phase industrial power grid. The electrical system is also upgraded with moisture-proof and high-temperature resistance for the tropical environment.



4. Q: How to prevent raw material from molding during the rainy season?



   A: Adopt a three-level moisture-proof system: elevated and drained storage yard, dehumidified warehouse with temperature monitoring, and pre-drying for long-term storage. Control warehouse relative humidity below 60% and turn over stacks regularly.



5. Q: What is the service life of wearing parts?



   A: The 6CrW2Si alloy steel ring die has an effective service life of 1600–2000 tons; the 40-42CrMnTi press roller shell has a service life of 800–1000 tons. We supply all spare parts at cost long-term.



6. Q: Do you provide on-site installation service in Indonesia?



   A: Yes. We can send professional technicians to your site for installation guidance, commissioning and staff training. We also provide detailed installation drawings for self-installation.
