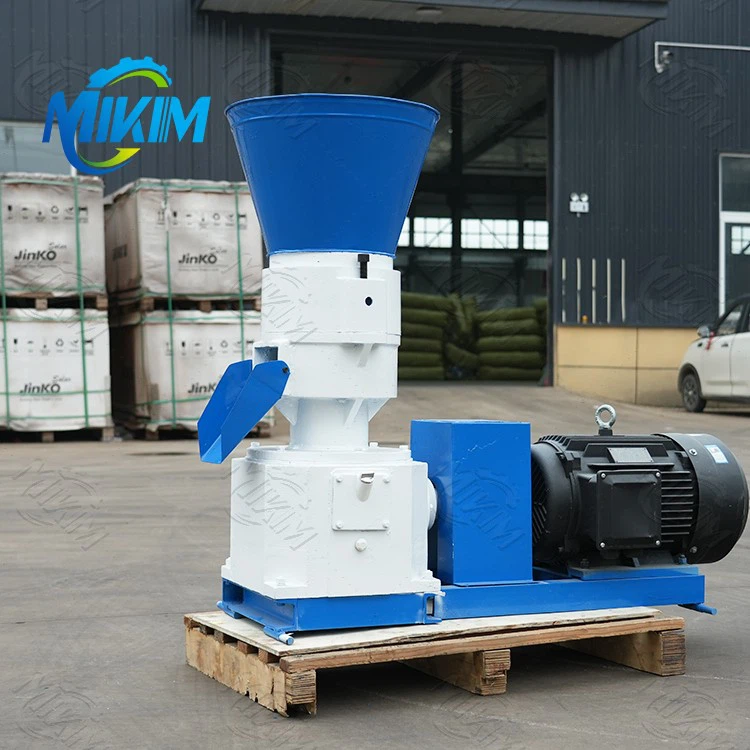

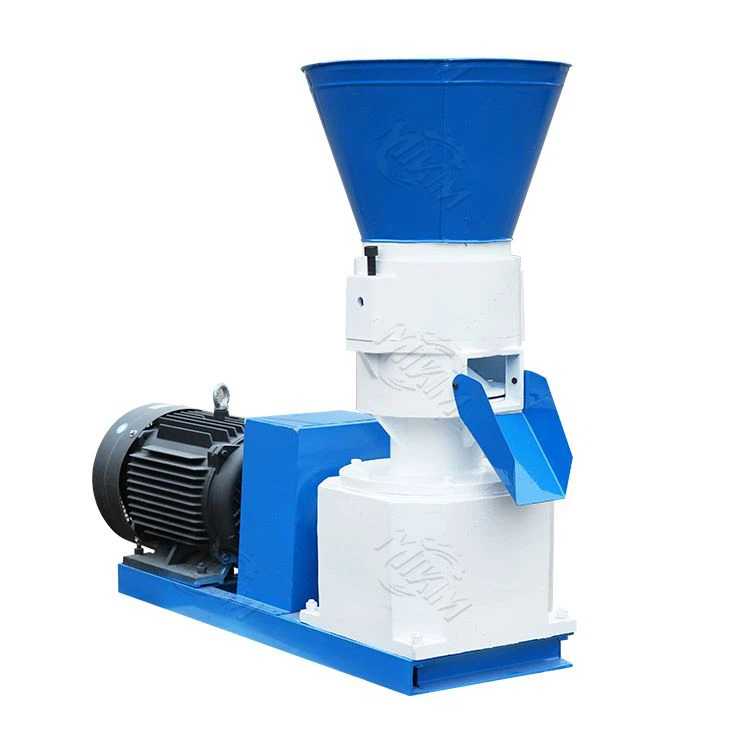

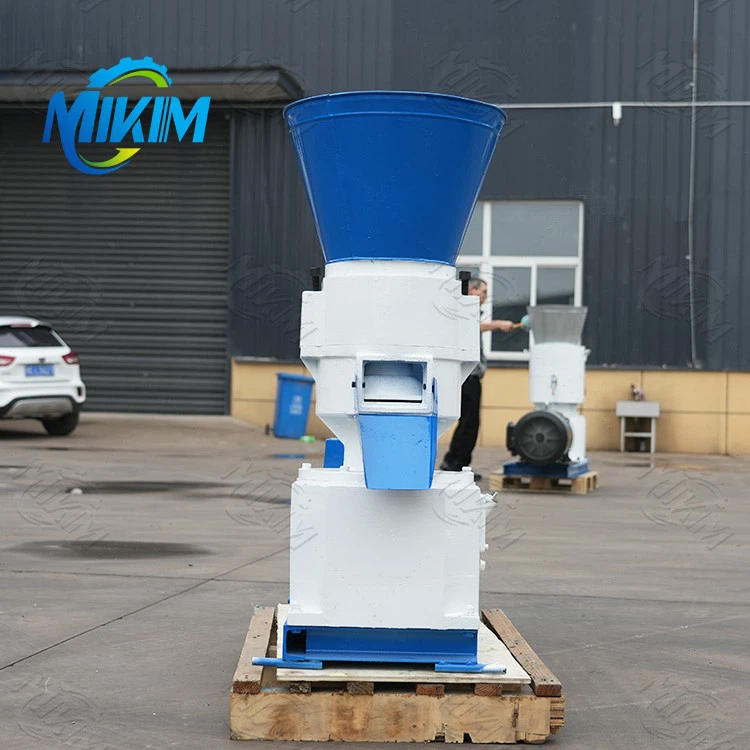

Biomass Wood Sawdust Pellet Machine
Sawdust Pellet Machine is one of our company's main products. It can crush eucalyptus, pine, birch, poplar, fruit wood, crop straw, bamboo chips, etc. into sawdust chaff, and then process it into biomass fuel. This machine has low noise during operation, good shaping, and a wide range of applications. It is a stable, reliable, efficient, safe and economical model.
Features
Products Description
In addition to processing sawdust, the flat die wood pellet machine can also use waste materials such as corn stalks, straw, peanut shells, corn cobs, cotton stalks, weeds, branches, leaves, sawdust, bark, etc. as raw materials. The pellets after forming are a new type of bioenergy, which can replace firewood, raw coal, fuel oil, liquefied gas, etc., and are widely used in heating, domestic stoves, industrial boilers, biomass power plants, etc.
Product Parameters
|
Model No. |
Capacity(kg/h) |
Power(kw) |
Pellet Size(mm) |
Weight(t) |
Dimension(mm) |
|
RKL-250 |
100-200 |
15 |
4-6 |
0.5 |
1400*600*1000 |
|
RKL-300 |
150-250 |
22 |
4-6 |
0.65 |
1760*670*1600 |
|
RKL-350 |
100-300 |
30 |
4-8 |
0.76 |
1860*670*1600 |
|
RKL-400 |
300-600 |
37 |
4.5-10 |
2.2 |
1900*850*1750 |
|
RKL-450 |
500-800 |
55 |
4.5-10 |
4.3 |
2300*1100*1900 |
|
RKL-550 |
1000-1500 |
90 |
4.5-12 |
5.5 |
2350*1100*2050 |
Product Analysis
raw material：
Biomass fuel uses solid waste such as corn stalks, wheat straw, rice straw, peanut shells, corn cobs, cotton stalks, soybean stalks, husks, weeds, branches, leaves, sawdust, bark and other solid waste as raw materials, which are crushed, pressurized, densified and formed into small stick-shaped solid particle fuel. Pellet fuel is made by squeezing sawdust, straw and other raw materials using rollers and ring dies at room temperature. The density of the raw materials is generally about 0.6-0.8, and the density of the particles after forming is greater than 1.1. It is very convenient to transport and store. At the same time, its combustion performance is greatly improved, which brings certain employment problems and economic benefits.
Main uses:
1. Civil heating and life energy: high fuel utilization rate and easy storage;
2. Biomass industrial boilers: as the main fuel for industrial boilers, it replaces coal and reduces atmospheric emissions and pollution;
3. Power generation: It can be used as a fuel for thermal power generation.
How it works?
The main pelletizing principle of MIKIM flat die wood pellet machine is: the motor drives the machine main shaft to rotate after the speed is changed by the reducer, the main shaft is connected to the roller shaft, the mold is stationary, the roller and the mold material rotate by friction, the material is pressed out through the mold, the cutter cuts the extruded material and falls into the throwing plate, thrown to the machine discharge hopper, and the pelletizing is completed. MIKIM flat die wood pellet machine has small output, economical and affordable, cheap, simple operation, stable quality operation, high safety factor, and is a good choice for families and small factories.
