Besides materials crushing machine, pellet cooling machine and pellet packing machine, the most important part in a biomass pellet line is the pellet mill. It is suitable for home use or small business to produce biomass pellet fuel. It can be configured with diesel or electric motor, and is flexible to move and easy to operate.
Raw material:
1) Wood waste, slobs, branch, and palm tree;
2) Bean straw, wheat straw, corn straw, cotton straw, rice straw, rice husk
3) Cotton shell, peanut shell, rice shell, palm tree, coconut shell
Raw material requirements
1) Size of raw materials: powder or no longer than 1cm
2) Moisture content of raw materials: 10-15%
3) Raw materials can be the mixture of 2 or more than 2 kinds different materials, they must be evenly mixed.
4) No adhesive or chemicals need in the processing.
|
Model |
Power |
Capacity |
Dimension |
Weight |
|
MK 200 |
7.5 kw |
100-120 kg/h |
1000*450*850 mm |
350 kg |
|
MK 250 |
15 kw |
200-250 kg/h |
1200*550*1050 mm |
550 kg |
|
MK 300 |
22 kw |
250-300 kg/h |
1250*600*1100 mm |
750 kg |
|
MK 350 |
30 kw |
350-400 kg/h |
1650*700*1300 mm |
1000 kg |
|
MK 450 |
45 kw |
450-500 kg/h |
1300*700*1500 mm |
1450 kg |
Traditional flat die biomass pellet machine: generally adopts roller granulation mode, which is composed of a series of feeder, roller, mold, conditioner, cutter, etc.

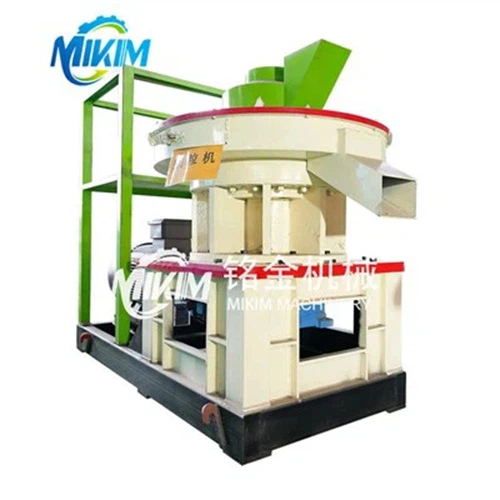

Ring die biomass pellet machine: adopts ring die pressing mode, which is composed of feeder, roller, mold, cutter, etc. Compared with the roller mode, it lacks auxiliary equipment such as conditioner.
Traditional biomass pellet machine: suitable for processing biomass raw materials such as plant straw, aloe, wheat straw, rice straw, wood chips, etc.
Ring die biomass pellet machine: suitable for processing raw materials such as sawdust, wood powder, peanut shells, rice husks, cottonseed shells, straw, etc.
Ring die biomass pellet machine: the diameter of the produced pellets can be adjusted between 2.5mm and 12mm, and the pellet shape is generally cylindrical, which is suitable for home or industrial heating and other occasions.
|
Model |
Main Power(kw) |
Capacity(t/h) |
Dimension(L*W*H) |
Weight(t) |
|
MK560 |
132 |
1.5-2 |
2200*1300*1600 |
5.8 |
|
MK700 |
160 |
2-3 |
2400*1400*1800 |
7.8 |
|
MK880 |
220 |
3-4 |
3000*1500*2200 |
13 |
The complete wood pellet production line is used to produce wood pellets, including: raw material preparation, wood crushing, sawdust drying, wood pellet granulation, wood pellet cooling, biomass pellet packaging. This Wood Pellet Production Line is designed for industrial production and can produce biomass pellets from any type of crops. The finished wood pellets produced by the biomass pellet press Production line can be widely used for heating in industrial boilers and large power plants as well as for household use to alleviate the energy crisis and meet environmental protection requirements.
The Pellet machine is the most important section of the biomass wood pellet production line, our company supplies machines and turn-key projects for you.
1. Crushing section:Crushing the raw materials into powder. Including small silos, hammer mill, conveyors, dust collector, air fan, etc.
2. Drying section:Drying the powder materials moisture 12%15%, including conveyors, rotary dryer and accessory equipments
3. Pelletizing section:The most important section of the line, pressing the materials into small pellets. Including conveyors, small silo, pellet machine, belt conveyor, sidewall conveyors, etc.
4. Cooling section:Cooling the high temperature pellets to room temperature. Including counterflow cooler, conveyors, cyclone, etc.
5. Packing section:Packing pellets into bags 50kg/bag or 1t/bag, etc. ncluding packing scale and sewing conveyor.
6. Electric control systerm & Accessory equipment:Controlling all the machines in the line, including carbinets and cables, etc.
Biomass molding machine is a new type of renewable and environmentally friendly fuel with the characteristics of cleanliness, high calorific value and high combustion efficiency. It can be used as fuel for combustion furnaces, boilers and power generation furnaces, and can be used as a substitute for coal in many fields.
The machine can produce pellets or lumps with different diameter molds, which can be easily replaced. For example, φ8mm, φ10mm, φ22mm, φ30mm, φ55mm, φ65mm, φ70mm, φ85mm;
According to the mechanical stamping design, after high temperature, high pressure and high frequency pressing, the density of the molded lumps is about 1.0-1.3g/cm3. The moisture content of the raw materials should be 10-15%.
Main Raw Materials:
All kinds of biomass material (pasture, sawdust, eucalyptus bark, bran, straw, rice straw, wheat straw, corn stalk, peanut shell, beanstalk, cotton husk, shrub, forest product residual wastes and other wood materials).
|
Parameters of the bio coal briquette machine |
|||
|
Model |
MK-500 |
MK-1000 |
MK-2000 |
|
Output (kg/h) |
500 |
1000 |
1200 |
|
Size (mm) |
3200*1500*1500 |
3500*1800*1700 |
3500*2000*1800 |
|
Weight (kg) |
4500 |
7000 |
7000 |
|
Total power (kw) |
35 |
61 |
65 |
Plastic biomass rdf briquette briquetting making machine
Plastic biomass rdf briquette briquetting making machine is an environmentally friendly equipment that converts waste into fuel rods through waste fuel rod briquetting machine. RDF waste fuel rod briquetting machine is made into fuel rods through classification, crushing, drying, compression and other processing processes. RDF fuel rods can replace traditional fossil fuels and are widely used in thermal energy equipment such as industrial furnaces and boilers. The production of RDF fuel rods by RDF waste fuel rod briquetting machine has the following advantages over traditional fuels: RDF fuel rods can replace traditional fossil fuels, reduce dependence on fossil energy such as oil and coal, and are conducive to protecting the environment and resources. The pollutant emissions in RDF fuel rods are less than those of traditional fossil fuels. For example, the emissions of carbon dioxide, nitrogen oxides, sulfur oxides, etc. are relatively low, and the impact on environmental pollution is relatively small. In general, RDF fuel rods have less impact on environmental pollution than traditional fossil fuels, but in the production process, attention should also be paid to the treatment of waste gas, wastewater, etc. to prevent pollution to the environment.
APPLICATION
Applicable materials, old clothes, wood chips, car interiors, waste plastics, sawdust, scraps, peanut shells, waste sponges, leaves, rice husks, waste paper scraps from paper mills, cow dung, peanut shells, corn stalks, cotton stalks, edible fungus residues, medicinal residues, domestic garbage, industrial solid waste and other combustible raw materials.
|
Model |
Power (kw) |
Capacity (kg/h) |
Briquette size |
Dimension (mm) |
|
36 |
55 |
800-1000 |
3*3cm |
L2500*W1800*H1700 |
|
45 |
75 |
1500-1800 |
3*3cm |
L2600*W2200*H1900 |
|
72 |
110 |
2000-2800 |
3*3cm |
L3200*W2300*H2200 |
|
100 |
132 |
3000-4000 |
3*3cm |
L4100*W2300*H2350 |
|
120 |
220 |
4000-5000 |
3*3cm |
L5000*W2450*H2480 |
The mobile wood chipper produced by MIKIM factory is widely used in garden, forest, road trees protection, park, golf course etc.
department, mainly used for grinding the kinds of branches cut off form the trees, then the particles we get can use as slipcover, garden bed base, , Edible fungus, Biomass power generation, and also can produce high density board, particle board, paper industry, etc. the particles can spray directly to the transportation car after shredding ,the volume of the delivery car is 10 times of the original branch transportation volume. And also this garden shredder can grind the tree branches any time anywhere, much more convenient.
The mobile wood chipper produced by MIKIM factory is widely used in garden, forest, road trees protection, park, golf course etc.
department, mainly used for grinding the kinds of branches cut off form the trees, then the particles we get can use as slipcover, garden bed base, , Edible fungus, Biomass power generation, and also can produce high density board, particle board, paper industry, etc. the particles can spray directly to the transportation car after shredding ,the volume of the delivery car is 10 times of the original branch transportation volume. And also this garden shredder can grind the tree branches any time anywhere, much more convenient.
1.Organic fertilizer: free decay into surface can be formed a good organic fertilizer.
2.Flower potting soil packing: coverage of bare soil to prevent dust purification air organic fertilizer additive
3.Mushroom cultivation base: apply to all kinds of mushroom cultivation recycling.
4.Animal feed: freshwater fish or natural organic pollution of plant-eating animal feed.
5.It can also be used in landscaping, paper mill, charcoal mill, feed mill, wood-based board factory, incense factory and so on .
|
Mobile wood chipper |
||
|
Model No. |
AK-6130D |
AK-6130 |
|
Engine type |
Diesel engine |
Motor |
|
Power |
28 HP |
22 KW |
|
Cutter drum Dia. |
300 |
300 |
|
Start way |
Electric start |
Air switch |
|
Speed |
2600 |
2900 |
|
Blade |
3 |
3 |
|
Feed press roller Dia. |
280 |
280 |
|
Feed roller power |
hydraulic |
hydraulic |
|
Feeding size (mm) |
300*200mmm |
300*200mm |
|
Tires |
165/70r13 |
165/70r13 |
|
Discharge Direction |
360° |
360° |

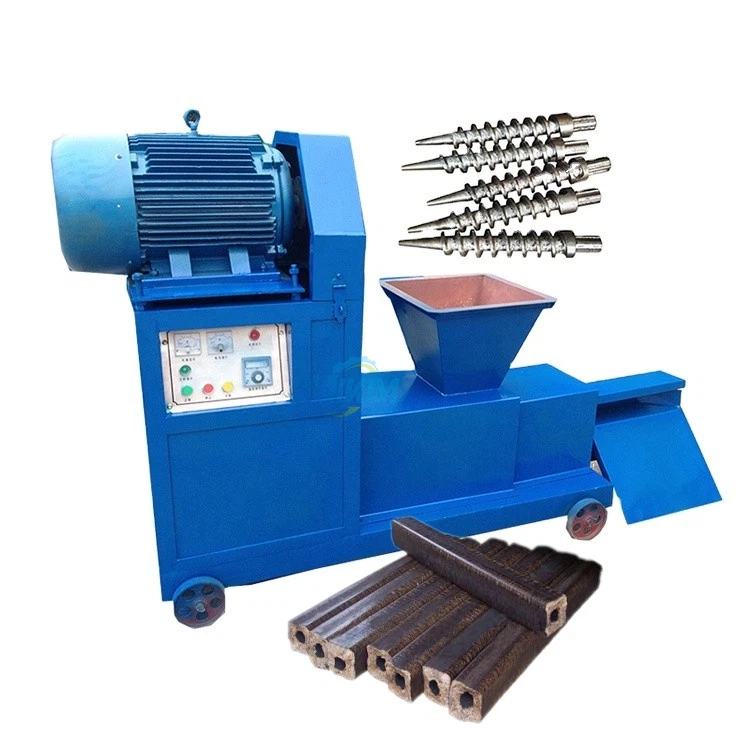

Biomass briquette machine shows the features of high capacity, low energy consumption, compact and durable. Many performance data such as capacity, wood briquettes density, electricity consumption and wearable degree has reached advanced level. Charcoal briquette machine can be used as charcoal powder briquette machine by replacement of some spare parts. The out diameter of finished briquettes is 50mm/80mm.
During this process, no binder need to be used. So the output briquette is a type of clean and green fuel that is ideal for use in furnaces, boilers and open fires.
Application for Charcoal Briquette :
Used as bio fuels for boiler
For Stove, Home heating
Used BBQ charcoal for Barbecue
Fuels for Europe country Fireplace etc.
|
Model |
Capacity |
Weight |
|
BC-50 |
200-250 kg/h |
550 kg |
|
BC-80 |
250-300kg/h |
700kg |
The coal rod machine is a coal rod forming equipment that compresses the modulated pulverized coal into a predetermined shape with strength by using the principle of screw extrusion. Its working principle is: the motor transmits power to the transmission through the V-belt, the transmission output shaft transmits power to the propeller shaft through the floating coupling, and the propeller on the propeller shaft pushes the coal material through the forming die head to produce an ideal high-pressure coal rod. The coal rod extruder adopts a hard-toothed reducer with small size and high load-bearing capacity.
|
Model |
MK-180 |
MK-210 |
|
Model size |
30-60mm |
30-80mm |
|
Dimension(m) |
1.6*1.1*1.3 |
1.9*1.4*1.45 |
This wood charcoal carbonization furnace is a continuous ratory drum type carbonization furnace. It can carbonize different materials into charcoal, such as sawdust, wood chips, rice husk, olive waste, coconut shells, nuts shell,sugarcane bagasse,small things etc. Finished charcoal can be sold in the market directly, or deep processing into BBQ charcoal, shisha charcoal, etc. The whole set mainly contains carbonization furnace, gasification furnace, charging part, discharging part, fan, etc.
|
Model |
Capacity (kg/h) |
Power |
Dimension |
|
800 |
250-300 |
15kw |
Diameter.80* Length 800cm |
|
1000 |
500-600 |
22kw |
Diameter 100* Length 1000cm |

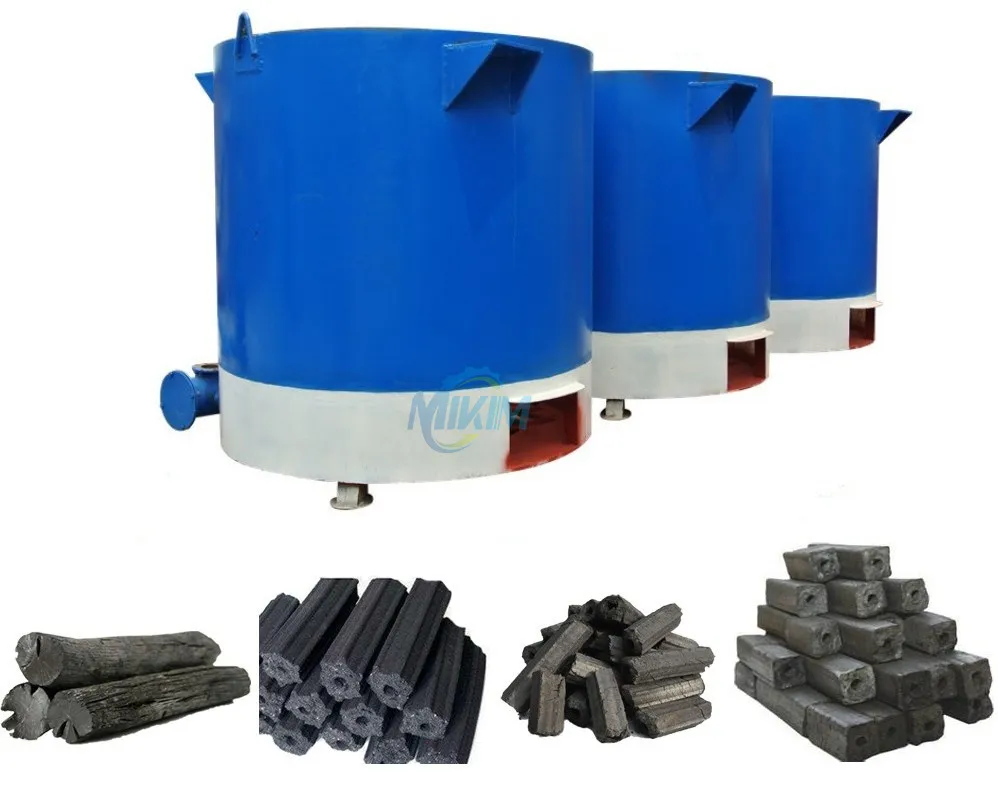

The hanging charring furnace adopts the advanced technology of recovering, purifying and circulating combustion of combustible gases, such as carbon monoxide, methane and oxygen, which are produced during the process of material charring. It fully achieves self-supply and self-sufficiency. The hoisted carbonization furnace is separated from the combustion chamber and adopts movable installation of carbonization liner, which can realize continuous work.
The lifting charcoal furnace includes furnace body, furnace cover, heating chamber and exhaust pipe, a charcoal liner is installed in the furnace chamber of the furnace body and a cover is installed on the charcoal liner, a downward-folded ring flange is fixed on the upper edge of the charcoal liner, and the downward-folded ring flange is installed with a matching buckle with a ring sealing ring fixed in the upper part of the inner part of the furnace chamber, and a lifting lugs are fixed on the sidewall of the charcoal liner, the sealing cap of the charcoal liner, and the furnace cover, respectively. Lifting lugs.
|
Model Name |
Capacity |
Mainly Included Parts |
Shipping |
|
QHL-1 |
2-3ton/24hour |
1outer stove+3 inner pot |
LCL |
|
QHL-2 |
5-6ton/24hour |
2outer stove+6 inner pot |
FCL 1*20GP |
The design of the horizontal carbonization furnace realizes a continuous production method and effectively improves production efficiency. When the equipment is running, its high-capacity, continuous operation characteristics can significantly reduce the operating time and downtime of a single equipment.
The horizontal carbonization furnace can ensure the uniformity and stability of the carbonized product by controlling the temperature and pressure during the carbonization process.
This equipment can effectively control flue gas emissions during the carbonization process and reduce environmental pollution. Its flue gas treatment system can efficiently filter and purify flue gas, making the discharged flue gas meet environmental protection standards.
The equipment is made of high-strength materials, with a stable structure, safety and reliability. Its control system is highly intelligent and can monitor the operating status of the equipment in real time, detect and handle abnormal situations in a timely manner, and ensure the safe and stable operation of the equipment.
|
Serial number |
Liner size |
Outside size |
Weight (kg) |
Output (kg) |
Volume m³ |
|
1 |
Ф0.8*1.5(m) |
Ф1.8*1.1*1.4(m) |
350 |
100 |
0.76 |
|
2 |
Ф1*1.5(m) |
Ф1.6*1.1*1.8(m) |
500 |
260 |
1.177 |
|
3 |
Φ 1*3(m) |
Ф1.5*3.3*2(m) |
850 |
400 |
2.355 |
|
4 |
Ф1.5*3(m |
Ф3.3*1.8*2.5(m) |
1377 |
600 |
5.3 |
|
5 |
Ф1.5*3.8(m) |
Ф1.9*2.5*4(m) |
2000 |
800 |
6.7 |
Our factory covers an area of more than 3,000 square meters and has more than 150 employees. We have enough professional technicians and quality teams to serve you, and have passed CE, ISO and other certifications.
Our after-sales service is perfect. We provide you with technical support, including installation training and post-maintenance. If you encounter any problems during use, we can video call. If necessary, we will send professional technicians to your country to solve the problem for you. At the same time, we will provide you with a batch of wearing parts to ensure the service life of the equipment.
