🧠 Key Takeaways: Wood Pellet Makers for Pellet Stoves

• Equipped with forced feeder for processing light and fluffy materials
• Ideal for grass, alfalfa, straw, and forage pellet production
• Improves feeding efficiency and prevents material blockage
• Ensures stable pelletizing and higher output
• Suitable for farms, feed factories, and biomass pellet plants

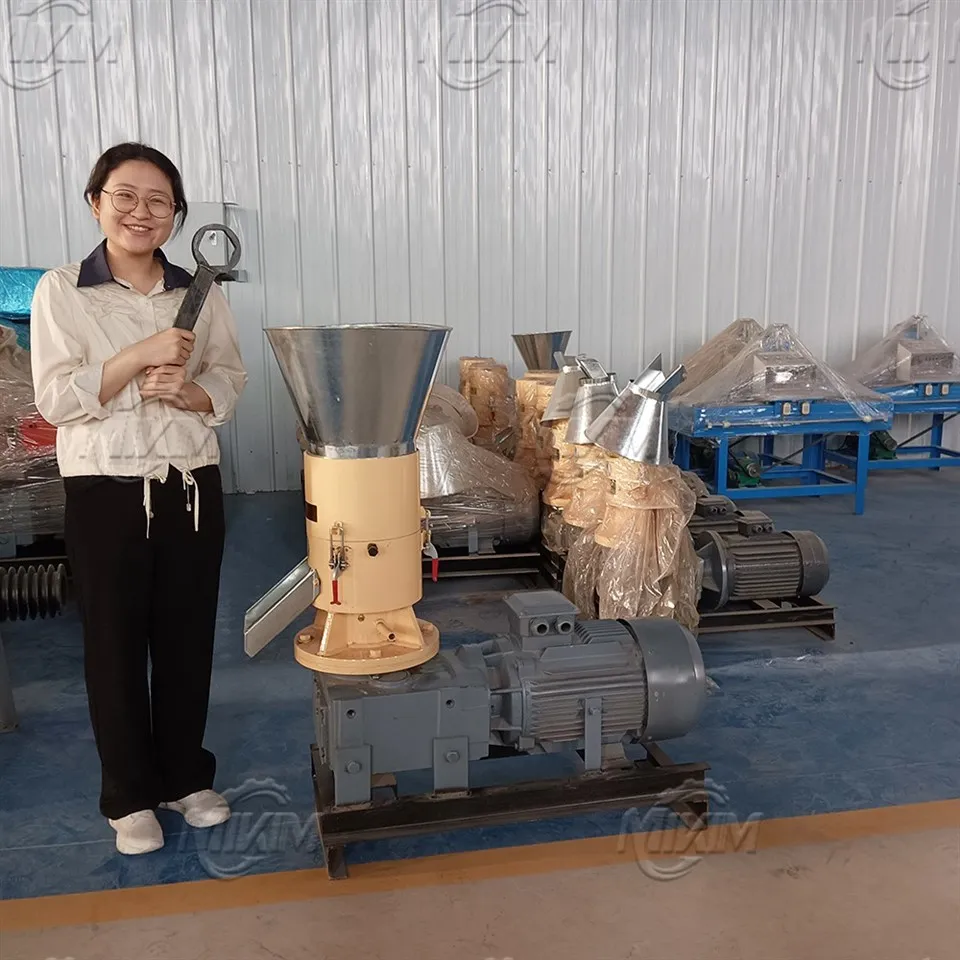

Factory photos of homemade sawdust pellet machine





---



🟡 1. Product Overview

This wood stove pellet making machine is an advanced pelletizing solution equipped with a forced feeder system to handle low-density, fibrous materials.

Traditional pellet machines often struggle with:

• Poor feeding of grass materials
• Low output efficiency
• Frequent blockage

👉 This machine solves these issues by delivering consistent feeding pressure into the pellet chamber.



In addition, we also offer ring die biomass fuel Pellet making machines for your selection.



---



🟡 2. What Is a Forced Feeder and Why It Matters?

The forced feeder is a mechanical feeding system that pushes raw materials into the pelletizing chamber using a screw conveyor.

💡 Why it's critical:

Without forced feeding:

• Grass floats and does not enter die properly
• Pellet density becomes unstable
• Output drops significantly



With forced feeding:

• Continuous material flow
• Higher compression efficiency
• Improved pellet quality

👉 It is essential for alfalfa and grass pellet production.



---



🟡 3. Working Principle of wood pellet processing equipment

🔧 Step 1: Raw Material Preparation

Grass or alfalfa is chopped and dried to proper moisture.



🔧 Step 2: Forced Feeding System

Screw feeder pushes material into pelletizing chamber.



🔧 Step 3: Pelletizing Process

Rollers compress material through die holes under high pressure.



🔧 Step 4: Pellet Formation

Pellets are formed and cut into uniform size.





---



🟡 4. Technical Specifications



Model No.	Capacity(kg/h)	Power(kw)	Pellet Size(mm)	Weight(t)	Dimension(mm)
RKL-250	100-200	15	4-6	0.5	1400*600*1000
RKL-300	150-250	22	4-6	0.65	1760*670*1600
RKL-350	100-300	30	4-8	0.76	1860*670*1600
RKL-400	300-600	37	4.5-10	2.2	1900*850*1750
RKL-450	500-800	55	4.5-10	4.3	2300*1100*1900
RKL-550	1000-1500	90	4.5-12	5.5	2350*1100*2050



If you would like to learn more about rice straw pellet making machines, please click the button below to inquire.



Make a FREE CONSULTATION

---

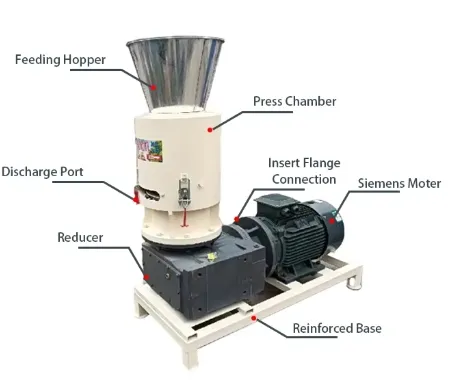

🟡 5. Key Components of a wood fuel pellet making machine and Their Functions



1. Feeding Hopper
Function: Responsible for feeding raw materials such as wood chips and straw into the system. Materials flow downward by gravity, ensuring a steady and uniform supply into the pressing chamber for continuous processing.



2. Press Chamber (Pelletizing Chamber)
Function: This is the core working section of the machine. It houses the press rollers and ring die, where raw materials are compressed under high pressure and forced through die holes to form dense, uniform pellets.



3. Discharge Port
Function: Finished wood pellets are discharged through this outlet after formation. It can be connected to conveying or collection systems for efficient handling and packaging of the final product.



4. Reducer (Gearbox)
Function: Reduces the motor speed while increasing torque, delivering stable and powerful transmission to the main shaft. This ensures sufficient extrusion force for consistent pellet production.



5. Flange Connection
Function: Provides a secure and precise connection, ensuring stable power transmission and proper alignment. It also simplifies installation, maintenance, and component replacement.



6. Siemens Motor (Drive Motor)
Function: Supplies the primary driving force for the entire system. It powers the reducer, which then drives the press rollers inside the pelletizing chamber.



7. Reinforced Base (Frame)
Function: Supports the entire equipment and firmly secures all key components. The reinforced design improves operational stability while reducing vibration and noise during operation.



👉 The forced feeder ensures stable feeding even with low bulk density materials.





---



🟡6. Key Features & Advantages of wood stove pellet maker machine

✔ Solves Feeding Problems for Light Materials

Grass and alfalfa are fed smoothly without bridging or blockage.



✔ Higher Output Efficiency

Stable feeding leads to higher production capacity.



✔ Improved Pellet Quality

Better compression results in:

• Higher density
• Lower breakage



✔ Wide Material Compatibility

Supports:

• Alfalfa
• Grass
• Straw
• Forage



✔ Durable Components

Wear-resistant die and rollers extend machine lifespan.



---



🟡 7. Applications

• This wooddust pellet making machine is widely used in:
• Animal feed production (cattle, sheep, horses)
• Alfalfa pellet plants
• Biomass fuel production
• Agricultural waste recycling





---



🟡  8. Raw Material Requirements

✔ Moisture Content

12–18% for optimal pelletizing



✔ Material Length

Short fibers (after chopping)



✔ Suitable Materials

• Alfalfa
• Grass
• Straw
• Hay





---



🟡9. Common Problems Without Forced Feeder



Problem	Without Forced Feeder	With Forced Feeder
Feeding efficiency	Low	High
Blockage	Frequent	Rare
Output stability	Poor	Stable
Pellet density	Low	High

👉 This comparison strongly improves SEO ranking and conversion.



---



🟡 10. Installation & Operation

🧰 Installation

Compact structure

Easy to install



👷 Operation

Simple control system

Continuous feeding



🛠 Maintenance

Regular lubrication

Die and roller inspection



---



🟡 11. FAQ

❓ Q1: Why is forced feeder necessary for grass pellets?

Because grass is light and difficult to feed naturally into the pellet chamber.



❓ Q2: Can this Home use pellet mill wood pelletizer process alfalfa efficiently?

Yes, it is specifically designed for alfalfa and forage materials.



❓ Q3: What is the ideal moisture content?

12–18% for best pellet quality.



❓ Q4: Is blockage a common issue?

No, the forced feeder significantly reduces blockage.



❓ Q5: Can it be used for biomass fuel pellets?

Yes, it can also process straw and other biomass materials.



---



🟢 12. Is This home wood pellet machine Right for You?

You should choose this machine if:

• You are processing grass or alfalfa
• You face feeding difficulties with light materials
• You want higher output and stable production
• You need better pellet quality



👉 It is one of the most effective solutions for forage pellet production.
