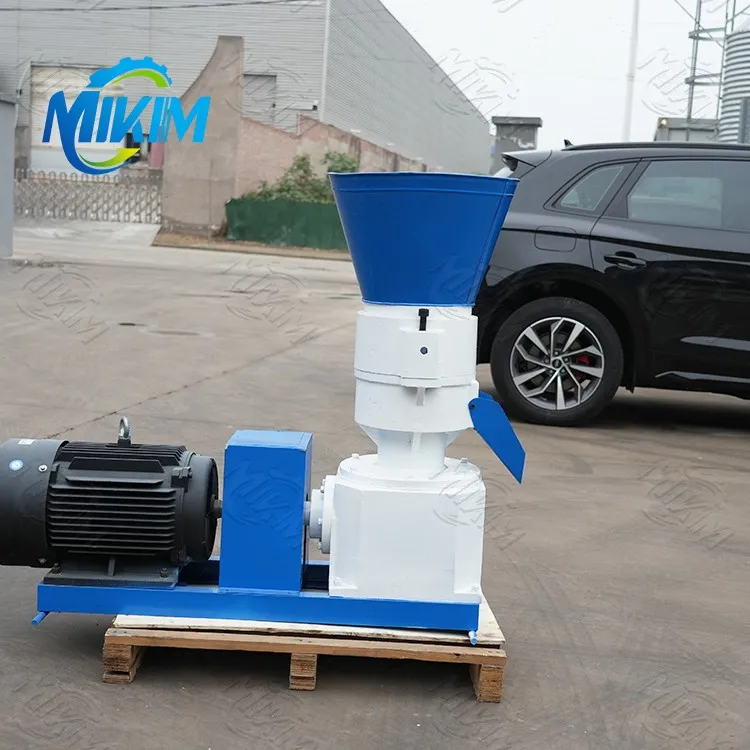

Sawdust Wood Pellet Production Machine

Flat die wood sawdust pellet machine It mainly use biomass from agricultural and forestry processing such as wood chips, straw, rice husk, bark and other biomass as raw materials, and solidify it into high-density pellet fuel through pretreatment and processing. Biomass pellet machines are divided into flat die biomass pellet machines and ring die biomass pellet machines.

Send Inquiry

Features

Products Description

The market prospects for wood pellets are promising, mainly due to its environmentally friendly characteristics and increasing market demand. With the improvement of global environmental awareness and the increase in demand for sustainable energy, the market demand for wood pellets has increased year by year. The domestic market is mainly used in power generation, heating and breeding, while the international market, especially in Europe and North America, is also increasing.

Product Parameters

Model	Capacity (kg/h)	Power (kw)	Specification (mm)	Weight(t)
RKL-250	100-200	15	4-6	0.5
RKL-280	150-250	22	4-6	0.65
RKL-300	100-300	30	4-8	0.76
RKL-350	300-600	37	4.5-10	2.2
RKL-400	500-800	55	4.5-10	4.3
RKL-550	1000-1500	90	4.5-12	5.5
RKL-800	1500-2500	160	4.5-12	6.8
RKL-1200	3000-5000	320	4.5-15	19

Product Analysis

introduce
1.Wood pellet mill can press biomass pellet and fertilizer granules from biomass waste or fertilizer waste, raw materials such as biomass from sawdust, rice husk, agricultural stalk, straw, peanut shell, sun flower, lucerne ,paper ect fertilizer waste such as animal manure, plant waste, chemical products and so on.

2. Wood pellet mill can press 2-8mm diameter pellets, last density is high ,convenient to operate.there is knive installed nearby pellet mill outlet door, which can adjust last pellet length.

3. Wood pellet mill has one flat die inside ,its flat die hole can be changed into from 2mm-8mm , for example if install 4mm hole die , then will produce 4mm diameter pellets ,Pellet density is 1.1-1.4ton/m3.

4. Wood pellet mill adopts Germany high technology ,which is our national patent machine. the flat die has the unique advantages to produce larger pressure than ring die pellet mill. in this way rollers and bearings are both enlarged , which can produce larger pressure. for ring die pellet mill, its ring die is restricted by its diameter, rollers can not be enlarged enough, bearing room is smaller , so the bearing are not strong enough to withstand pressure. especially for crude fiber biomass waste, their adhesive is very low and needs high pressure to press good pellets.
