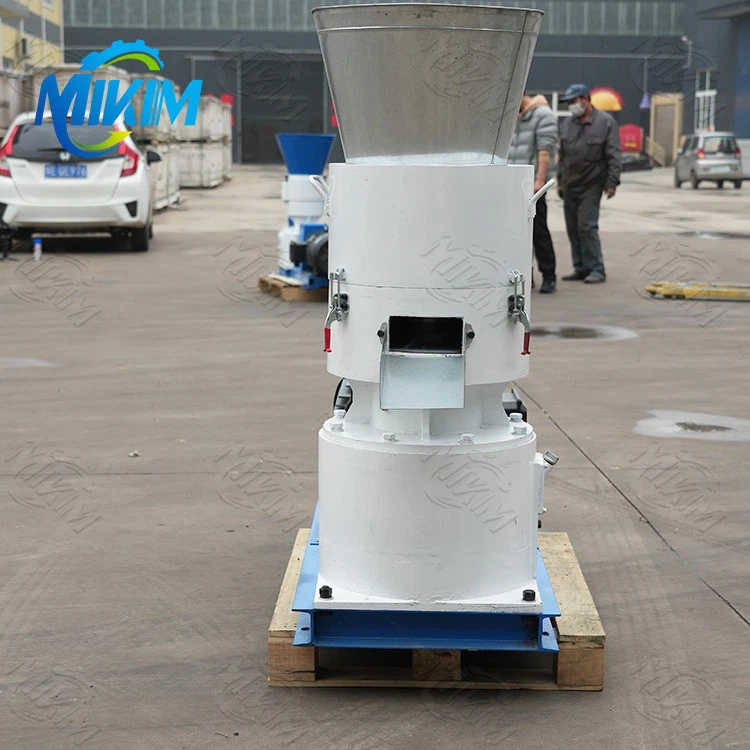

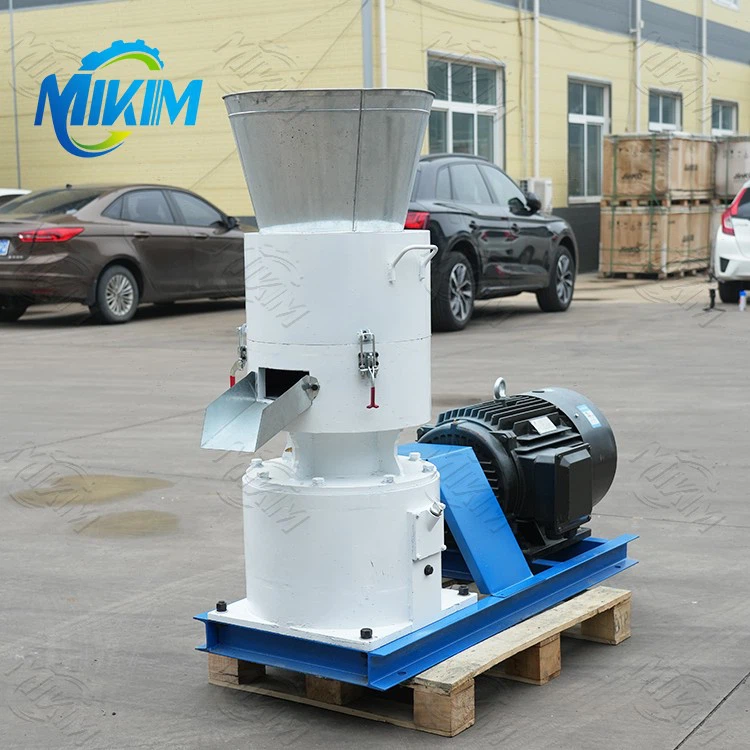

Fully Automatic Fuel Pellet Machine Equipment

The fuel pellet machine can produce high quality pellet fuel.

Send Inquiry

Features

Products Description

As a new type of clean energy, wood pellets have a wide range of applications.
First, it can replace traditional fossil energy such as coal and oil, reduce environmental pollution and protect the ecological environment.
Second, it can be used as fuel for industrial boilers, domestic water heaters and other equipment, with the advantages of high calorific value, low humidity and easy storage.
It can also be used as animal feed, fertilizer and other agricultural purposes to improve agricultural production efficiency.

Product Parameters

Model	Capacity	Power	Dimensions	Weight
MK-250	100-200kg/h	15kw	11204401060mm	400kg
MK-300	200-300kg/h	22kw	12805601220mm	700kg
MK-350	300-400kg/h	30kw	13006001250mm	800kg
MK-400	400-600kg/h	37kw	13906501290mm	1000kg
MK450	600-800kg/h	45kw	16207001600mm	1500kg

Product Analysis

A complete wood chip pellet machine consists of a feed conveyor, a pellet machine main machine, an electric control cabinet, an automatic lubrication pump, and a dust removal system.
The pellet machine main machine can be divided into three parts: the power part (main motor, gearbox lubrication pump, feed plate motor), the transmission part (gearbox, bearing chamber), and the pelletizing part (pelletizing chamber, discharge cover, feed plate). The power part determines the maximum operating current and output of the pellet machine, the transmission part determines the speed of the pellet machine main shaft roller, and the pelletizing part determines the pellet forming condition.

1. The moisture content of the raw materials is not appropriate. If the moisture content is too high or too low, the pellets cannot be formed. The pellet machine is made by physical pressing without any chemical components added. The adhesion is formed by the combination of appropriate moisture, so the moisture content of the raw materials is one of the important factors.
2. The compression ratio of the mold is not correct; the compression ratio and moisture content are both equally important factors. One is controlled by the raw materials and the other is controlled by the mold. Both ratios are indispensable. The compression ratio must be communicated with the merchant.
