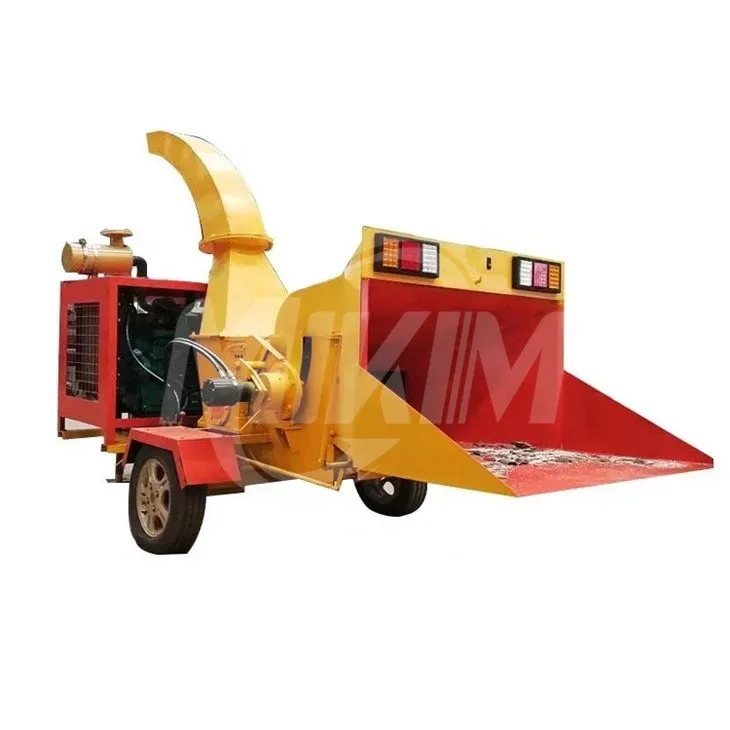

Waste Wood Large Crusher

Wood chippers can crush all kinds of wood.

Send Inquiry

Features

Products Description

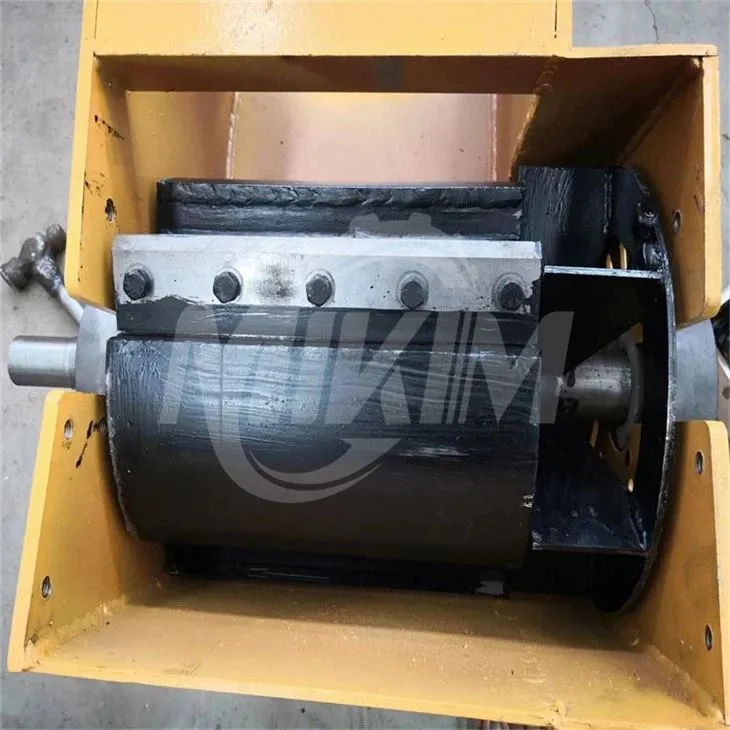

The wood chipper is mainly composed of a base, a feed port, a cutter disc, a housing, a cutting blade and an electronic control. Its working principle is to drive the cutting blade on the cutter disc to rotate at high speed through a motor to cut and crush the wood entering the machine. The entire equipment occupies a small area and is suitable for mobile operations. It is widely used in the material preparation section of small and medium-sized particleboard and fiberboard production enterprises, and can also be used by individual households to produce commercial wood chips.

Product Parameters

Model	HR6100 Mobile branch crusher
Power	Two choice diesel engine 32hp or motor 4P-22KW
Knife roller disc diameter	300mm
Rotating speed	2600r/min or 2900r/min
Blade quantity	3 moving knives, 1 static knife
length of blade	300mm

Product Analysis

Special equipment for wood crushing. Due to its reasonable design, compact structure, safety, durability, high production efficiency, it has been promoted and used with good results. The whole set of equipment is driven by only one motor, with low noise, simple structure, compact layout, low price, stable operation, low energy consumption, high output, good quality of finished wood chips, and low processing cost.

The wood chip crusher integrates the dual crushing functions of blade cutting and high-speed airflow impact and collision, and can also complete the fine material sorting process at the same time. During the blade cutting and crushing process, the rotor generates high-speed airflow, which rotates in the direction of the blade cutting. The material is accelerated in the airflow, and the repeated impact causes the material to be double-crushed at the same time, accelerating the material crushing rate.
