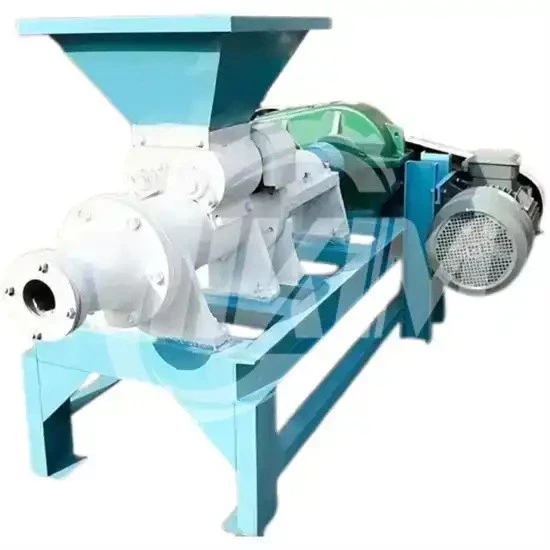

Activated Charcoal Powder Extruder
The emergence of carbon powder extruders has eased the intensity of manual labor and reduced production costs.
Features
Sawdust Coal Press Machine Principle:
Carbon powder forming machine (also called coal rod machine, charcoal powder rod making machine, carbon rod extruder, coal rod extruder) uses the principle of screw extrusion to compress the prepared pulverized coal into a predetermined shape with a certain strength. Shaped coal rod forming equipment. Its working principle is: the electric motor transmits power to the transmission through the V-belt, and the transmission output shaft transmits the power to the propulsion shaft through the floating coupling. The propeller on the propulsion shaft pushes the coal material out through the forming die to produce the ideal coal. High pressure coal rods and carbon rods. The carbon rod extruder adopts a hard-tooth surface reducer, which is small in size and has high load-bearing capacity.
Charcoal machine maker
| Model | Capacity | Roating speed | Power | Model size | Dimension(m) | Weight |
| MK-140 | 2-3(t/h) | 46-60(r/min) | 11KW | 30-40mm | 1.4*0.9*0.6 | 1.5t |
| MK-180 | 3-4(t/h) | 38-50(r/min) | 22KW | 30-60mm | 1.6*1.1*1.3 | 2.4t |
| MK-210 | 4-5(t/h) | 30-40(r/min) | 30-37KW | 30-80mm | 1.9*1.4*1.45 | 3.5t |
| MK-300 | 6-8(t/h) | 40-50(r/min) | 40-50KW | 30-100mm | 2.5*1.6*1.65 | 6t |
Coal Ball Press Machine process:
Raw materials - first crush the raw materials with a multifunctional pulverizer - then add appropriate binders and the crushed raw materials and mix them evenly with a wheel grinder - then the carbon powder molding machine can be used to shape the rods - the finished rods can be packaged after drying; In order to prevent the motor from overloading, it is recommended that the user install an ammeter and voltmeter, and adjust the feeding amount and water content according to the ammeter.
Carbon powder extruder machine
Straw charcoal machine maintenance:
1. Before starting each shift, check whether the rotating parts are flexible and whether there are any abnormal noises. The machine can be put into production after running for 2 to 3 minutes.
2. The raw materials have been processed until the large particle size is less than 3mm. Water, binder and curing agent are added, and the mixture can be used after stirring and retting for 24 hours.
3. If the discharge port is blocked, use wooden or bamboo strips to clear it. Do not use metal rods.
4. The bearings in the rotating parts of the machine must be regularly injected with lubricating oil, and the temperature of the bearing parts should not exceed 60 degrees.
5. Stop unloading before stopping the machine. Stop the machine after the material in the cylinder is squeezed out. Disassemble the machine head, clean it and reinstall it to prepare for the next shift.
