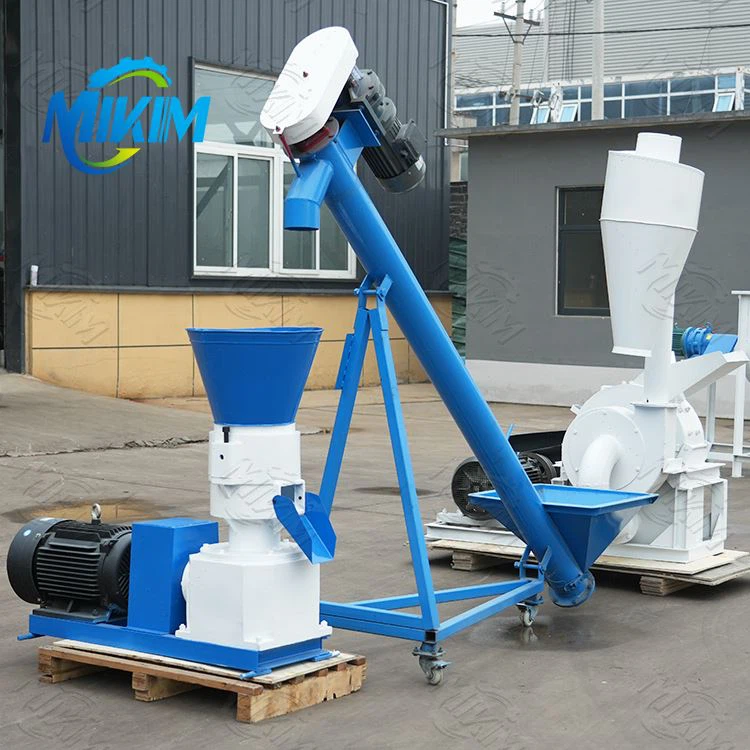

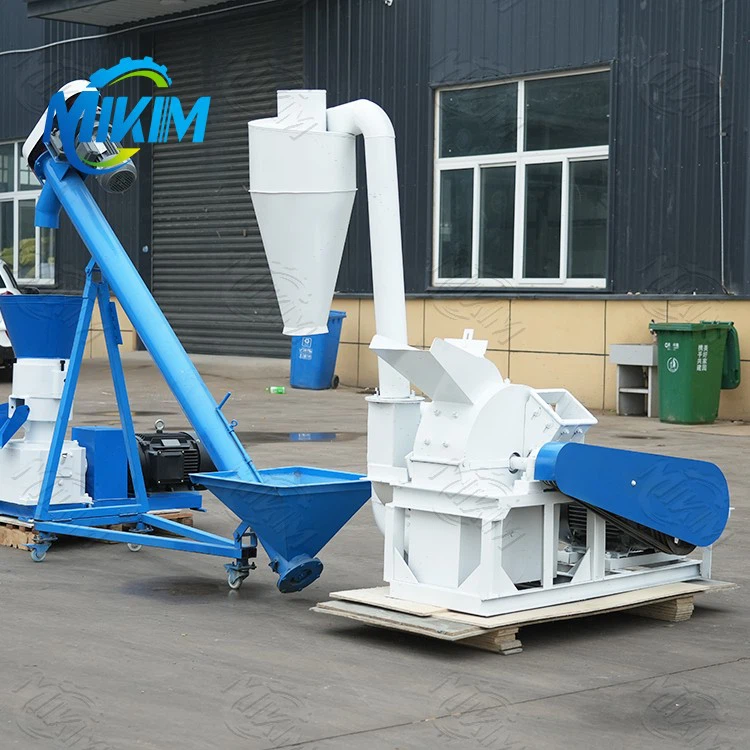

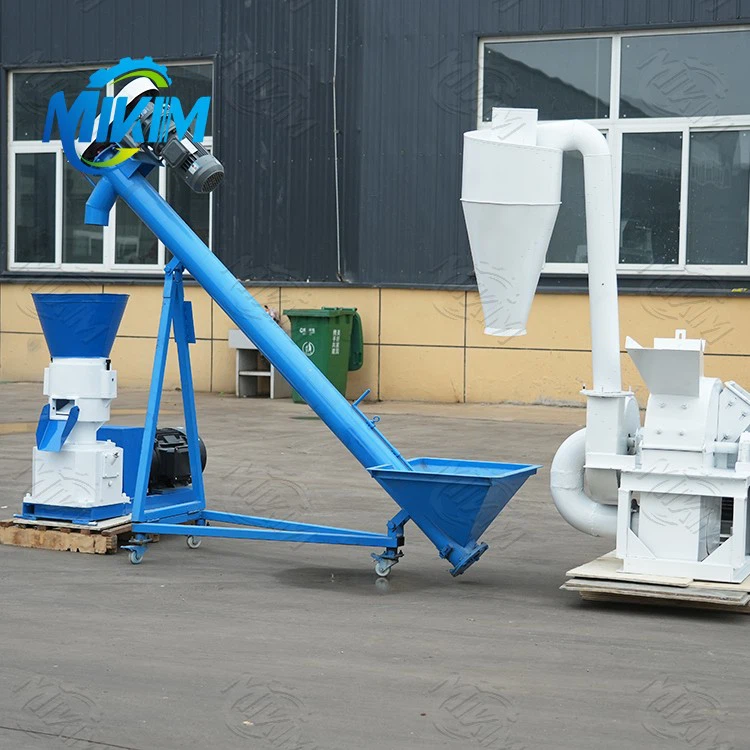

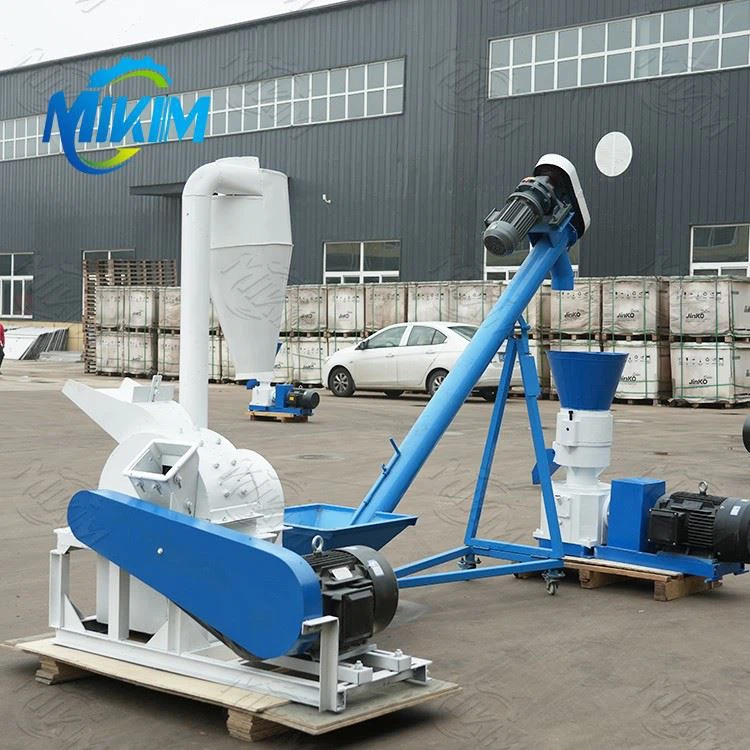

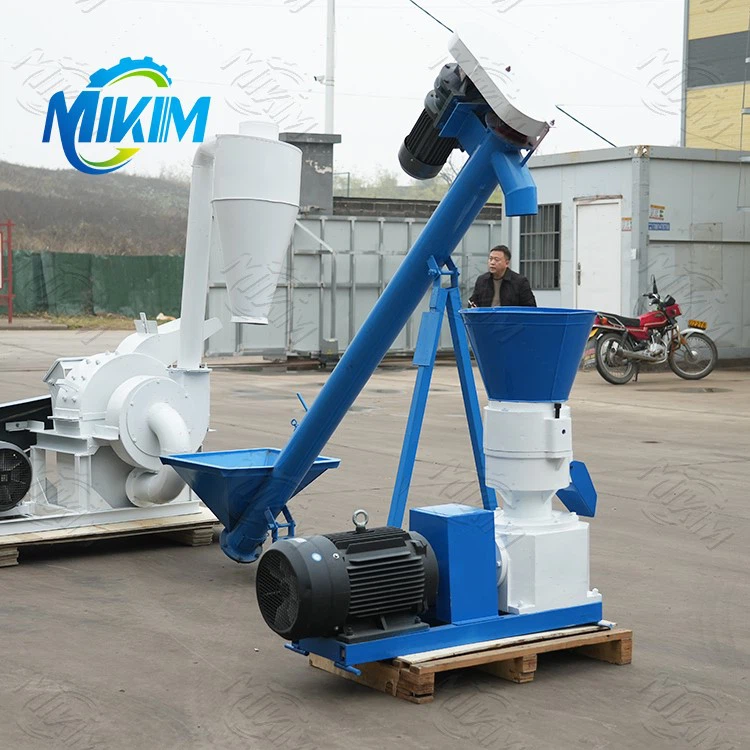

Small Wood Pellet Plant
Biomass pellet machine line, also known as wood pellet machine line.The pellet fuel produced is a new type of bioenergy, which can replace wood, raw coal, oil, liquefied gas and other combustion functions, suitable for home heating, hot water boilers, industrial boilers, biomass power plants and so on.
Features
Products Description
When the raw material is fed into the hopper, it goes down between the pellet maker roller and flat die.By the pressing of rotating die, raw material biomass is extruded though the round die holes, and tight pellets are produced with high density, uniform length and smooth surface through pelletizer pellet mill equipment.The characteristic of Household Pellets Granules Making capacity 100-200kg.
Product Parameters
|
Model No. |
Capacity(kg/h) |
Power(kw) |
Pellet Size(mm) |
Weight(t) |
Dimension(mm) |
|
RKL-250 |
100-200 |
15 |
4-6 |
0.5 |
1400*600*1000 |
|
RKL-300 |
150-250 |
22 |
4-6 |
0.65 |
1760*670*1600 |
|
RKL-350 |
100-300 |
30 |
4-8 |
0.76 |
1860*670*1600 |
|
RKL-400 |
300-600 |
37 |
4.5-10 |
2.2 |
1900*850*1750 |
|
RKL-450 |
500-800 |
55 |
4.5-10 |
4.3 |
2300*1100*1900 |
|
RKL-550 |
1000-1500 |
90 |
4.5-12 |
5.5 |
2350*1100*2050 |
Product Analysis
Advantages
1. Body shell: thickened steel plate body shell is used, ductile iron is cast into an integral painting process, with bright color and elegant appearance
2. Pure copper motor: stable performance, fast heat dissipation, low noise, strong power, high working efficiency
3. Pressing wheel grinding plate: increase the roughening pressing wheel, and the grinding plate adopts the design of excellent chrome manganese pressure shaft and grinding plate, so that the materials can be mixed evenly
4. Long service life: excellent material, stable structure, suitable for long time operation and reducing failure rate
Package
This machine is packed in standard export wooden cases. We will wrap the machine with plastic film to prevent scratches. Then use a wooden box to fix the fuselage to prevent the machine parts from being damaged due to bumps during transportation. Regarding packaging, we also support customization. If you have special requirements, please contact us for instructions.
Delivery:
About these machine, we have two ways to transport by sea and air. Please provide us with your address so that we can choose a more suitable transportation method for you. We can also deliver the machine to your agent in China if you have.
