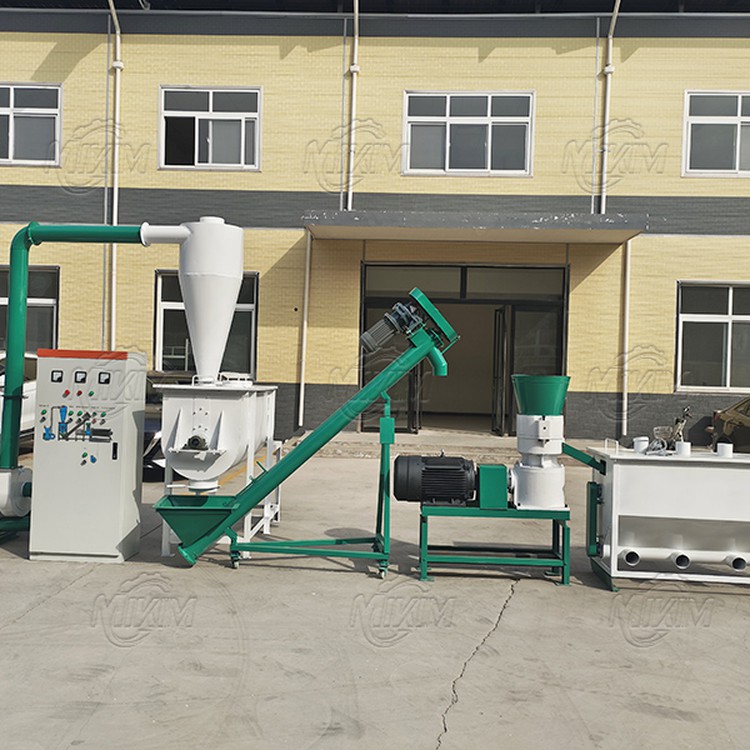

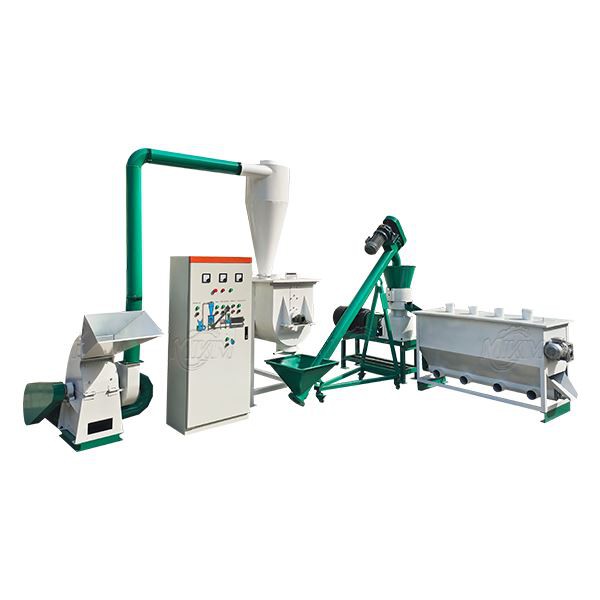

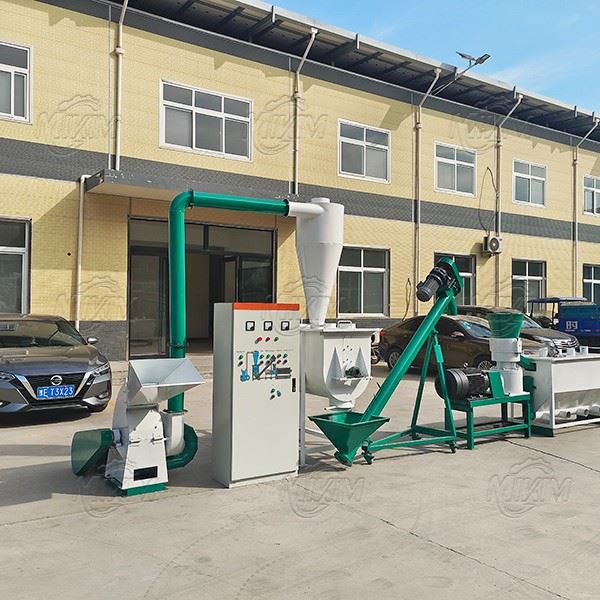

What Is a 500kg/h Small Wood Pellet Production Line?



A 500kg/h small Straw Pellet Making production line is a compact biomass fuel production system designed to convert sawdust, wood chips, rice husk, straw, and other biomass materials into dense fuel pellets. It is widely used by small biomass fuel plants, farms, furniture factories, and wood processing workshops that need stable pellet production with lower investment costs.

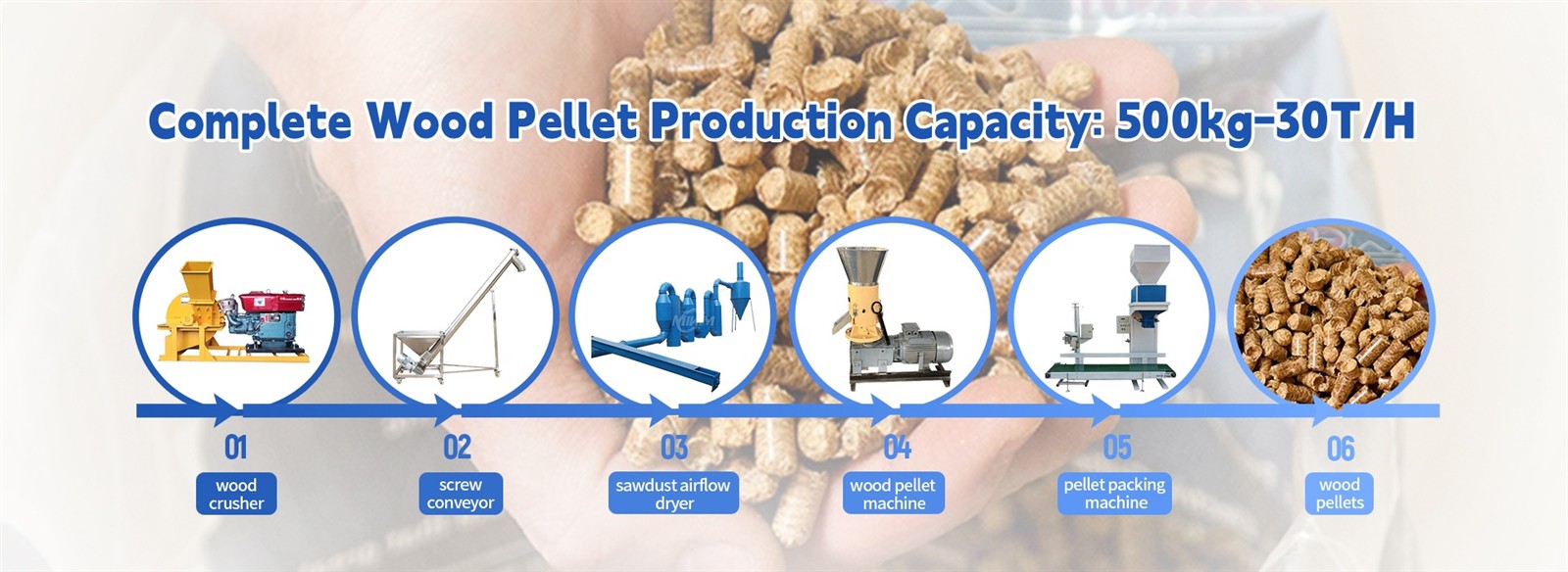

A standard 500kg/h biomass pellet making line usually includes:

• Wood crusher
• Drying system
• Screw conveyor
• Pellet machine
• Cooling machine
• Screening machine
• Packing system



The line is suitable for customers who need:



• Low investment but commercial pellet production
• Stable pellet density and combustion efficiency
• Continuous operation with reduced labor costs
• Biomass fuel production for heating or resale





Compared with traditional loose biomass burning, pellet fuel produced by this line has higher energy density, lower moisture content, easier transportation, and cleaner combustion performance.



---



Is This 500kg/h Biomass Pellet Machine Line Suitable for Your Working Conditions?

Before investing in a pellet production line, most buyers focus on four critical questions:

1. Does It Match My Raw Materials?

This line supports various biomass materials:

• Sawdust
• Wood shavings
• Rice husk
• Peanut shell
• Corn stalk
• Bamboo powder
• Palm fiber
• Straw
• Forestry waste

Raw Material Size Requirement

Size: ≤ 5mm

Moisture content: 10%–15%



If your material is larger than 5mm, a wood crusher is required before pelletizing.

If moisture exceeds 15%, a drying machine is recommended to avoid low pellet density and machine blockage.





---



2. Can It Meet My Production Capacity Requirement?

Output capacity:

400–600kg/h depending on raw material type and moisture

Suitable for:

Daily operation of 6–10 hours

Small commercial pellet fuel production

Local biomass fuel supply businesses

Estimated daily output:

3–5 tons/day





---



3. Does It Meet Industrial Production Standards?

This production line is designed for stable industrial operation with:

• Heavy-duty steel structure
• Industrial-grade gearbox transmission
• Continuous feeding system
• Stable pellet forming pressure

Wear-resistant ring die and rollers

Finished pellets feature:

• High density
• Smooth surface
• Low ash content
• Stable burning efficiency





---



4. Is It Suitable for My Budget?

For many small investors, this biomass wood pellet line offers an ideal balance between investment cost and production efficiency.

Advantages for Budget-Conscious Buyers

• Lower electricity consumption
• Reduced labor requirement
• Compact installation area
• Expandable design for future capacity upgrades

This allows customers to enter the biomass pellet market without building a large industrial factory initially.



---

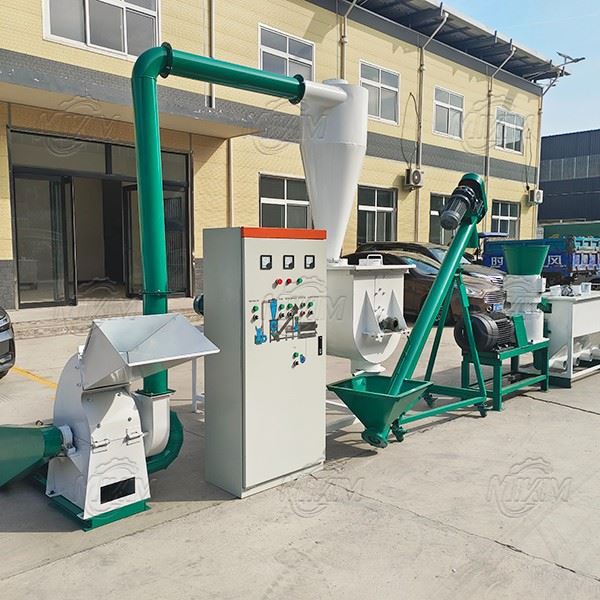

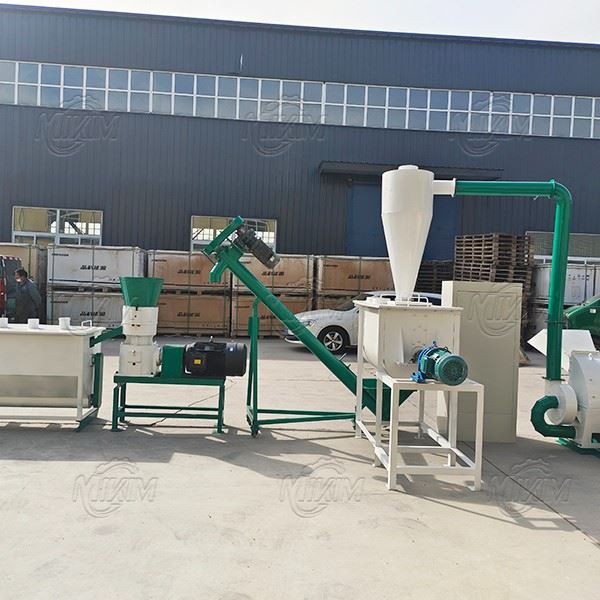

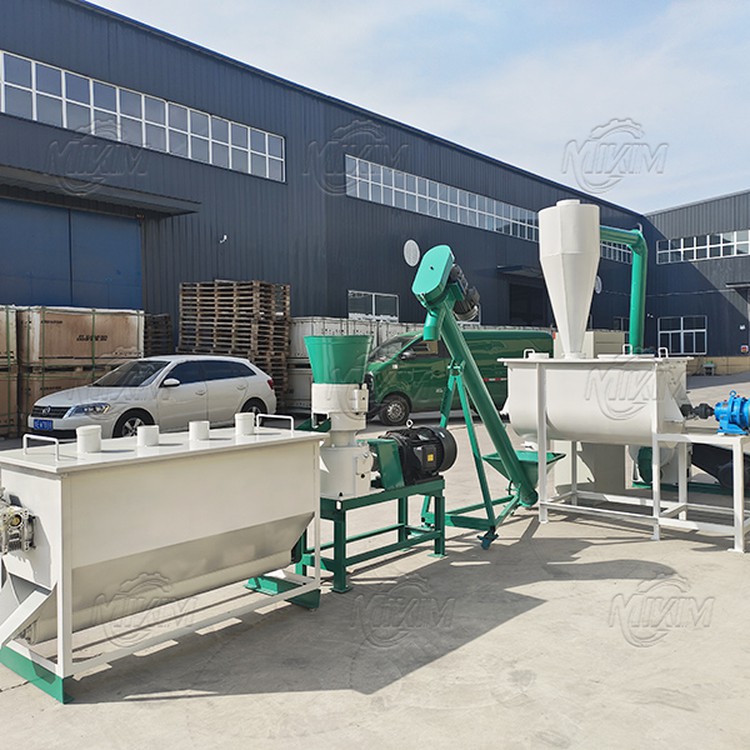

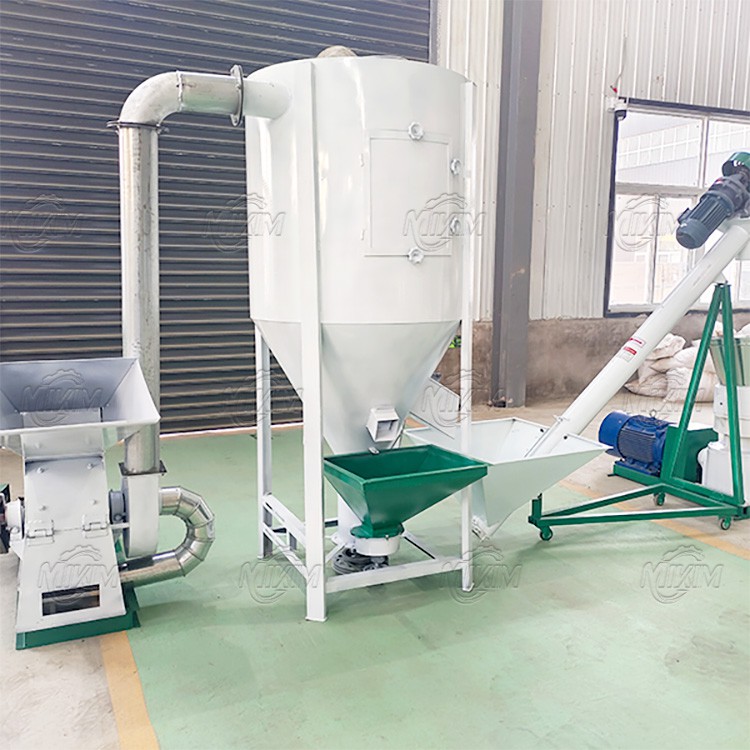

Structure of the 500kg/h small Sawdust Pellet Production Line

1. Wood Crusher Machine

Function:

Crush wood branches, wood scraps, and large biomass materials into smaller particles

Required particle size:

Less than 5mm

Benefits:

Improves pellet forming efficiency

Reduces die wear



---

2. Drying Machine

Function:

Reduce raw material moisture

Ideal moisture:

10%–15%

Benefits:

Prevents pellet cracking

Improves pellet density



---

3. Screw Conveyor

Function:

Transport materials automatically between machines

Benefits:

Reduces labor cost

Improves feeding stability



---

4. Sawdust Pellet maker Machine

Core equipment of the production line.

Function:

Compress biomass powder into dense pellets

Features:

High-pressure roller system

Strong ring die structure

Stable continuous operation

Finished pellet diameter:

6mm / 8mm / custom sizes



---

5. Pellet Cooling Machine

Function:

Reduce pellet temperature after pelletizing

Benefits:

Prevents pellet deformation

Improves storage stability



---

6. Vibrating Screening Machine

Function:

Remove broken pellets and dust

Benefits:

Improves finished pellet quality



---

7. Packing Machine

Function:

Automatic weighing and packaging

Optional package sizes:

• 15kg
• 20kg
• 25kg

Jumbo bags







---



Main Advantages of the 500kg/h small home use wood pellet maker Production Line

Compact Structure for Small Workshops

The production line occupies relatively small factory space and is suitable for small industrial workshops.



Stable Continuous Production

Industrial gearbox transmission improves operational stability during long working hours.



Wide Raw Material Compatibility

Supports multiple biomass materials, helping customers reduce raw material procurement risks.



Low Labor Requirement

Semi-automatic conveying and feeding reduce manual handling.



High Pellet Density

Produced pellets burn longer and generate higher heat value.



Expandable Future Capacity

The production line can later upgrade to:

1 ton/h

2 ton/h

5 ton/h production systems





---

Technical Parameters

Item	Specification
Capacity	500kg/h
Pellet Diameter	6–8mm
Raw Material Moisture	10%–15%
Raw Material Size	≤5mm
Power Supply	Customized
Installation Area	Depends on configuration
Pellet Density	1.1–1.3t/m³
Final Pellet Moisture	8%–12%
Control Type	Semi-automatic
Application	Biomass fuel production



---



Raw Material Requirements

Different biomass materials affect pellet quality and output efficiency.

Recommended Materials

Wood Sawdust

Best choice for stable pellet formation.

Rice Husk

Good fuel value but may require mixing.

Straw

Requires proper crushing and drying.

Bamboo Powder

Produces high-density pellets.



---



Customer Case

Small Biomass Fuel Plant in Southeast Asia

A customer operating a small biomass fuel business needed a low-investment pellet production solution using furniture factory sawdust waste.

Customer Requirements

• Capacity around 500kg/h
• Stable continuous operation
• Low electricity consumption
• Easy maintenance



Our Solution

We configured:

• Wood crusher
• Rotary dryer
• 500kg/h ring die pellet machine
• Cooling and packing system



Results

• Stable daily production
• Reduced raw material waste
• Improved pellet density
• Lower labor costs

The customer later expanded to a larger production line after increasing local pellet fuel sales.





---

Delivery Time

Typical production lead time:

15–30 working days

Factors affecting delivery:

• Voltage customization
• Machine configuration
• Automation level

Testing before shipment is available to ensure stable operation before delivery.





---

Installation & Technical Support

We provide:

• Machine layout design
• Installation guidance
• Operation training
• Video technical support
• Spare parts support

Optional:

Overseas engineer support









---



FAQ

What raw materials can this line process?

It can process sawdust, wood chips, straw, rice husk, bamboo powder, peanut shell, and other biomass materials.



What moisture content is best?

10%–15% moisture is recommended for stable pellet forming.



Can this line run continuously?

Yes. The production line is designed for continuous industrial operation.



What pellet size can be produced?

Usually 6mm and 8mm pellets.

Custom sizes are available.



Is installation difficult?

No. We provide installation drawings, videos, and technical guidance.



How long do spare parts last?

Wear parts lifespan depends on raw material hardness and operating hours.

Proper moisture control significantly increases die and roller lifespan.



---



Why Choose This 500kg/h Small Wood Chip Pellet Making Production Line?

This production line is ideal for customers who need:

• Stable biomass pellet production
• Low investment entry into the pellet fuel market
• Flexible raw material processing
• Industrial-grade reliability
• Expandable future production capacity

Instead of allowing biomass waste to pile up like forgotten forest debris, this system converts it into valuable renewable fuel with commercial market potential.





---



Request a Custom Pellet Production Solution

To recommend the best configuration for your project, please provide:

• Your raw materials
• Moisture content
• Required capacity
• Factory space size
• Voltage requirement
• Target pellet diameter

We can help customize a complete 500kg/h wood biomass pellet production line solution based on your actual production conditions and budget requirements.
