Products

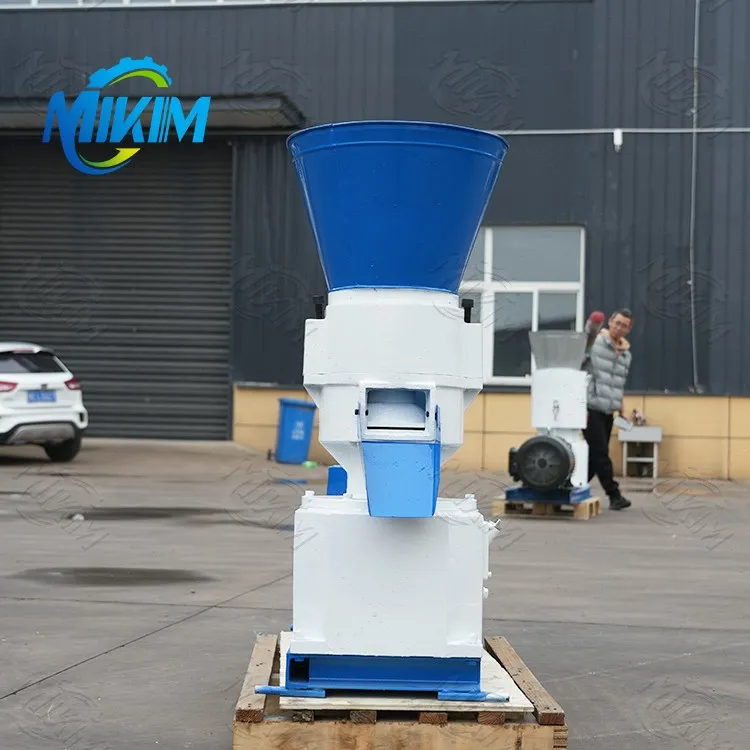

Sawdust Pellet Press Machine
High Quality Wood Pellet Mill is powered by an electric motor or a diesel engine to drive the pressure roller to rotate, and press the wood powder out of the die hole. The particles are sent out of the machine through the throwing disc, and the length of the particles is controlled by the blade.
Features
Products Description
High Quality Wood Pellet Mills is mainly suitable for coarse fiber granulation, such as: wood chips, rice husks, cotton stalks, cottonseed husks, weeds and other crop stalks, household garbage, waste plastics and waste from factories. It is also suitable for granulation of materials with low adhesion rate and difficult to be formed, such as granulation, press block and granulation bar, and can also be used for low temperature granulation of biological bacterial fertilizer, organic fertilizer and compound fertilizer.
Product Parameters
|
Model |
Capacity (kg/h) |
Power (kw) |
Specification (mm) |
Weight(t) |
Dimension (mm) |
|
RKL-250 |
100-200 |
15 |
4-6 |
0.5 |
1400*600*1000 |
|
RKL-280 |
150-250 |
22 |
4-6 |
0.65 |
1760*670*1600 |
|
RKL-300 |
100-300 |
30 |
4-8 |
0.76 |
1860*670*1600 |
|
RKL-350 |
300-600 |
37 |
4.5-10 |
2.2 |
1900*850*1750 |
|
RKL-400 |
500-800 |
55 |
4.5-10 |
4.3 |
2300*1100*1900 |
|
RKL-550 |
1000-1500 |
90 |
4.5-12 |
5.5 |
2350*1100*2050 |
|
RKL-800 |
1500-2500 |
160 |
4.5-12 |
6.8 |
3200*1235*2700 |
|
RKL-1200 |
3000-5000 |
320 |
4.5-15 |
19 |
3800*1700*4200 |
Product Analysis
Features of Small wood pellet mill machine biomass wood pellet machine for stove burning with ce approval：
The sealing of spare parts for small pellet machine is excellent. The roller shaft is sealed on both sides, while other manufacturers only seal one side.
The feeding hopper applies whole sheet metal edge instead of welding to be more stable and firm.
The compression ratio of small pellet press determines the quality of your pellets. We have professional team doing the raw material test and have obtained best compression ratio for over 20 kinds of common seen biomass.
The electric components adopt top brands in China to guarantee stable performance.
introduce
1. Wide production range, we could get it to pellet from biomass we could find now such as wood chips, pine, bamboo, peanut shell, rice husk and straw.
2. The density of the pellet could be 1100 kg/m³.
3. Please ensure the max length of the biomass material is less than the diameter of the nib. For example, the diameter of the nib is 6mm, the diameter of sawdust could not be longer than 6mm.
4.Please make sure the moisture of the material is 10%-18%, different material, different moisture requirement. For example, pine has got more lignose and sugar, the moisture could be lower, opposite, the moisture should be higher.
