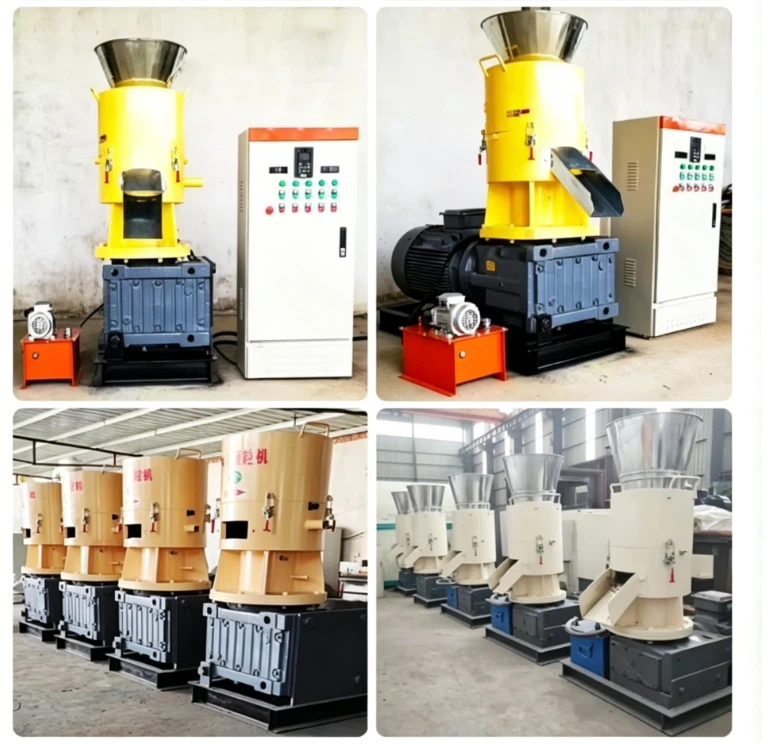

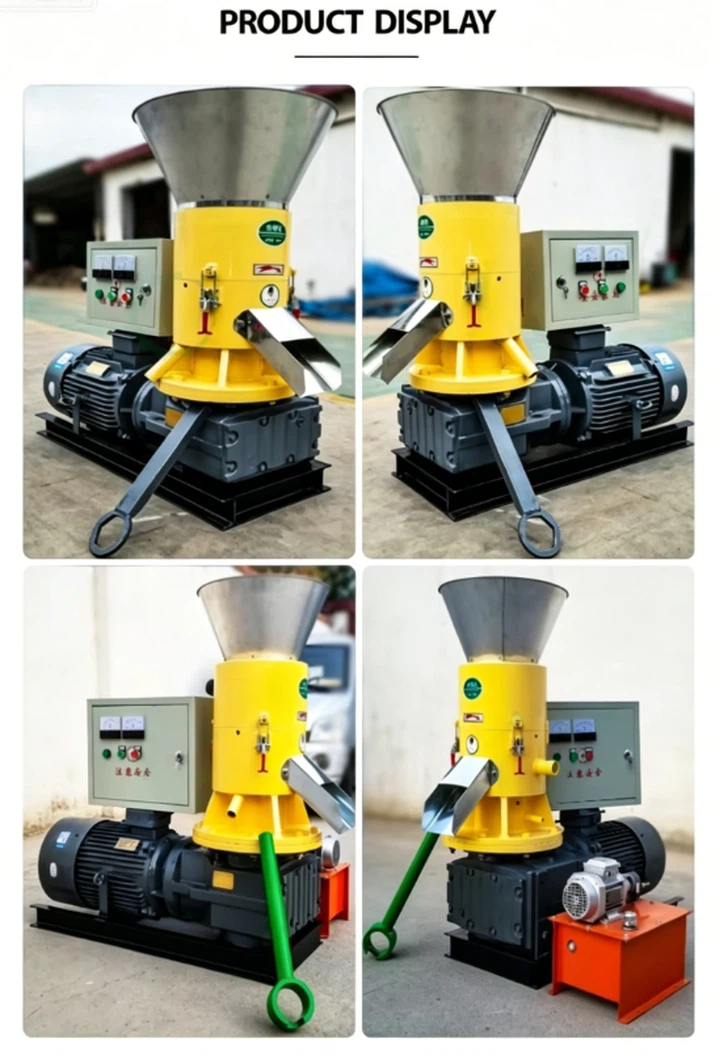

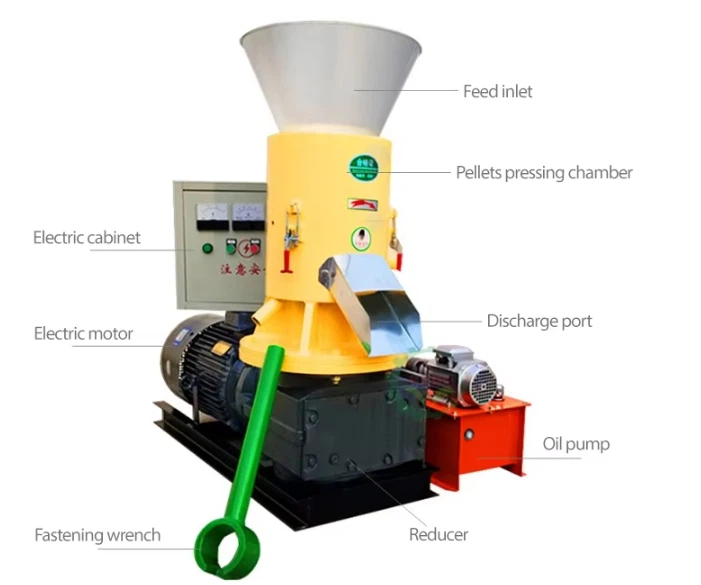

150-300kg/h Small Home Use Wood Pellet Maker Machine

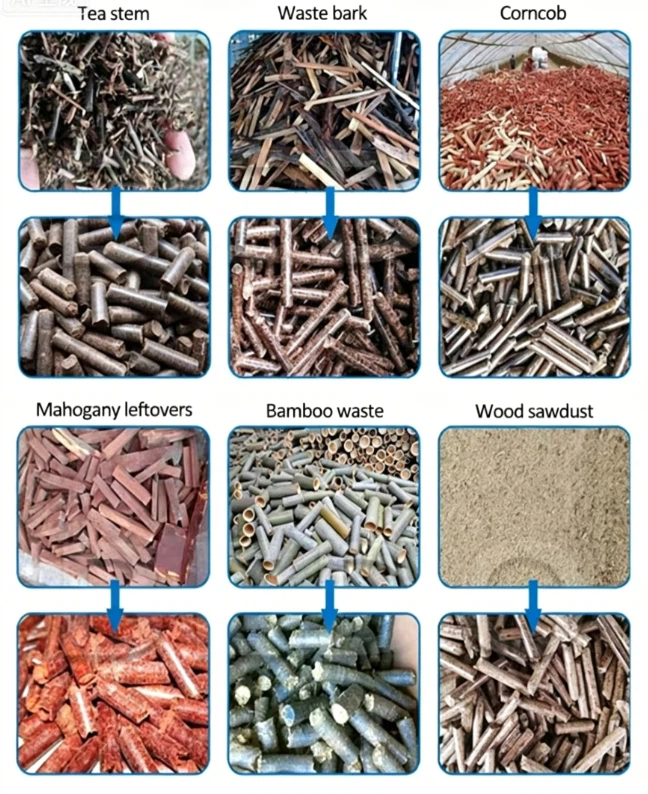

This rice straw pellet making machine, also known as a roller pellet mill, is easy to operate, energy-efficient, and has a high output, making it a professional piece of equipment for producing biomass fuel pellets. This equipment is suitable for various biomass raw materials, such as sawdust, rice husks, bamboo, peanut shells, corn cobs, and straw. It has a wide range of applications, including energy production, industrial processing, agriculture, and residential heating.
Features
1.Flat die biomass fuel Pellet making Machine material after compression molding, without adding any raw materials, a machine multi-purposegranulation, rod, pressure block as long as the exchange of the mold can be done.
3.The machine shell is made of nodular cast iron, and the spindle press roller shaft is modulated and machined. It has highstrength, good stability and is not easy to deform, and improves the accuracy and prolonging the bearing life. Pelleting chamber with observation door can be inspected and repaired at any time.

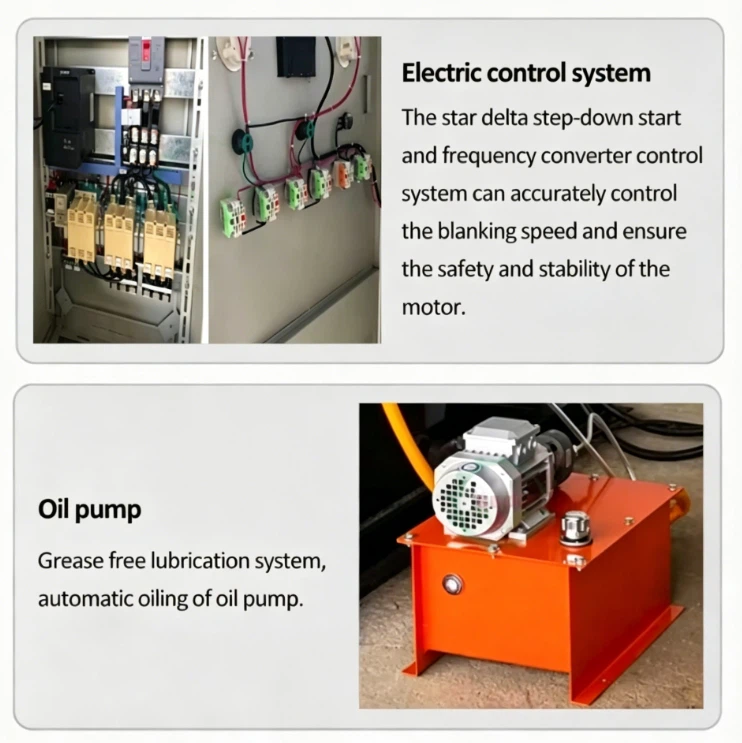

4.The motor adopts energy-saving and environmental protection motor, star triangle decompression start control cabinet, small start current, less power consumption.
5.The increase of the outer diameter of the press roller makes the temperature generated by extrusion not easy to be transmitted to the bearing room, so as to ensure that the bearing works at low temperature; Bearing is also increased to enhance the compression capacity; The press roller is fully sealed to prevent the phenomenon of dust, to ensure that oil does not overflow. Prolong the service life of the roller bearing, improve the work efficiency and reduce the cost.

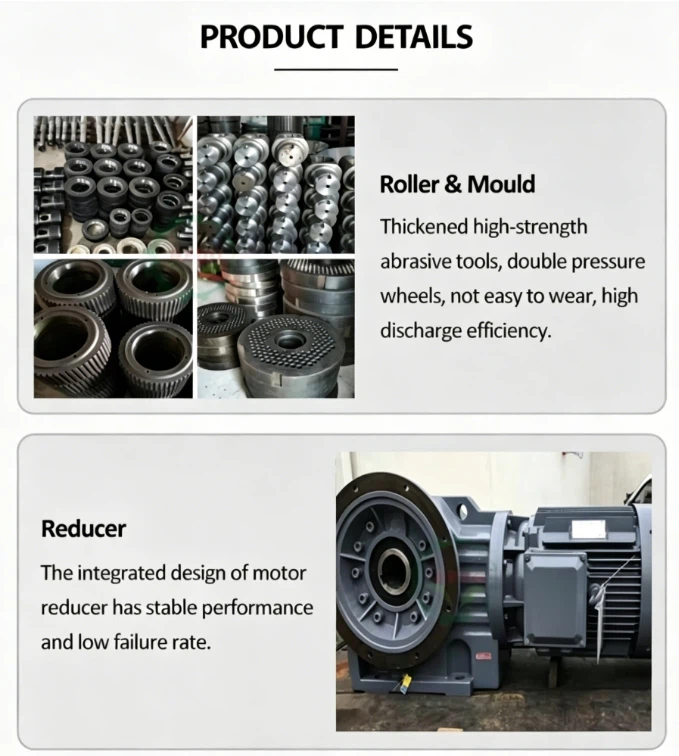

6.The mould and roller are made of high quality alloy steel and advanced carbonizing heat treatment process to improve the service life.
Details Images
Technical Data
|
Model No. |
Capacity(kg/h) |
Power(kw) |
Pellet Size(mm) |
Weight(t) |
Dimension(mm) |
|
RKL-250 |
100-200 |
15 |
4-6 |
0.5 |
1400*600*1000 |
|
RKL-300 |
150-250 |
22 |
4-6 |
0.65 |
1760*670*1600 |
|
RKL-350 |
100-300 |
30 |
4-8 |
0.76 |
1860*670*1600 |
|
RKL-400 |
300-600 |
37 |
4.5-10 |
2.2 |
1900*850*1750 |
|
RKL-450 |
500-800 |
55 |
4.5-10 |
4.3 |
2300*1100*1900 |
|
RKL-550 |
1000-1500 |
90 |
4.5-12 |
5.5 |
2350*1100*2050 |

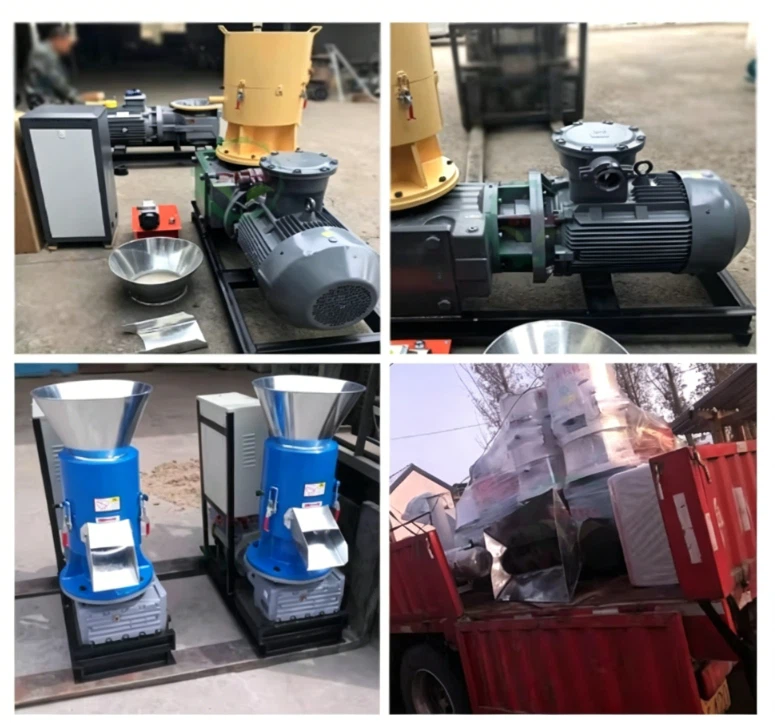

Packing & Delivery

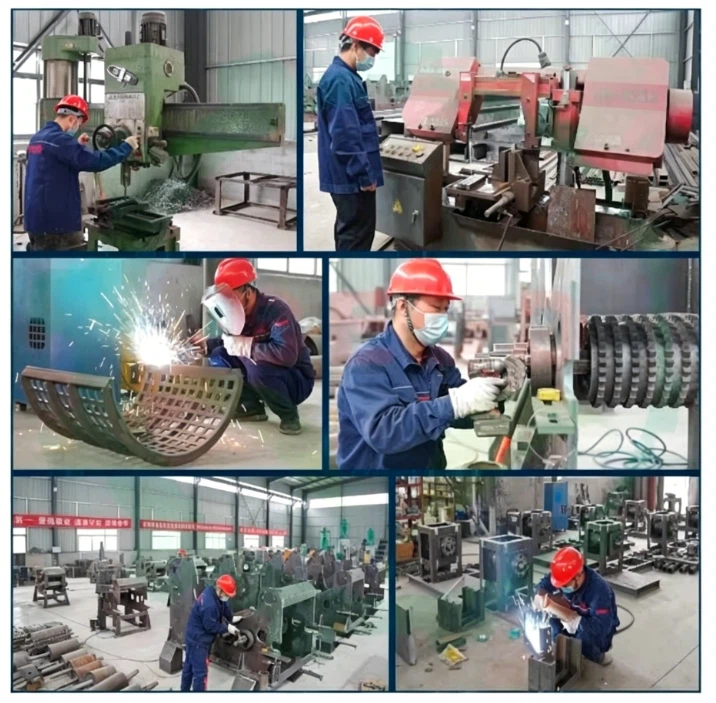

Company Profile
FAQ
Q: Are you a factory or a trading company?
A: We are a manufacturer with self-operated export rights and a 2,000-square-meter factory.
Q: How is the quality of the machines?
A: We have been in this field for many years and can provide you with high-quality machines.
Q: How to order?
A: Step 1: Please tell us what model and quantity you require.
Step 2: We will then create a PI for you to confirm the order details.
Step 3: Once we confirm everything, we can arrange payment.
Step 4: Finally, we deliver within the specified timeframe.
Q: Can you give us a better price?
A: Of course. We can provide you with an accurate quotation based on your specific requirements and order volume.
Q: After-sales service?
A: 12-month warranty on all products.
As an experienced manufacturer, you can rest assured of our quality and after-sales service.
Q: Can you provide OEM & ODM services or customize our logo?
A: Yes! We can customize your logo (please authorize us), and our professional designers are capable of designing your product according to your requirements for ODM & OEM orders.
Q: What's the payment way?
A: We accept T/T. You need to pay a 30% deposit in advance and the remaining 70% before shipment.
Company Profile
Packaging and shipping
