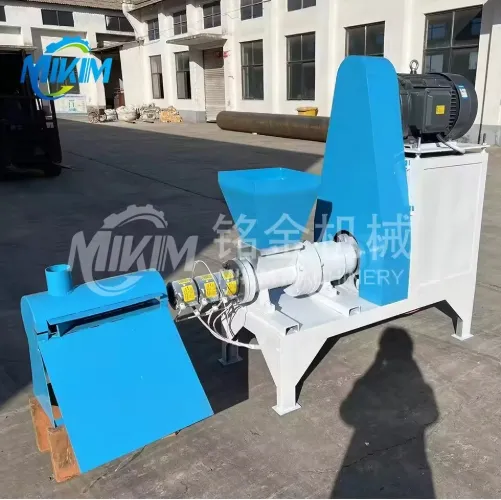

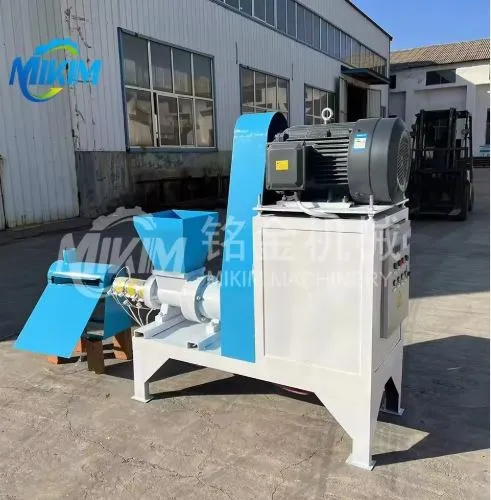

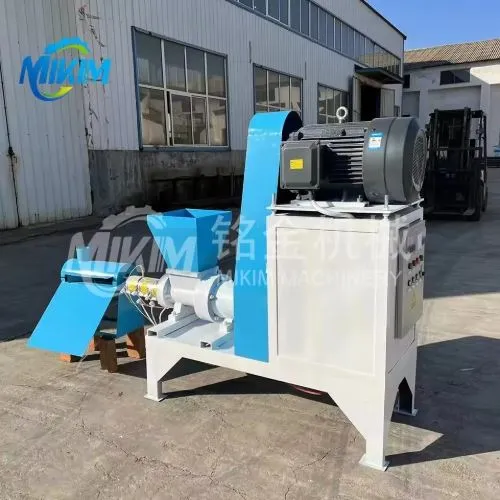

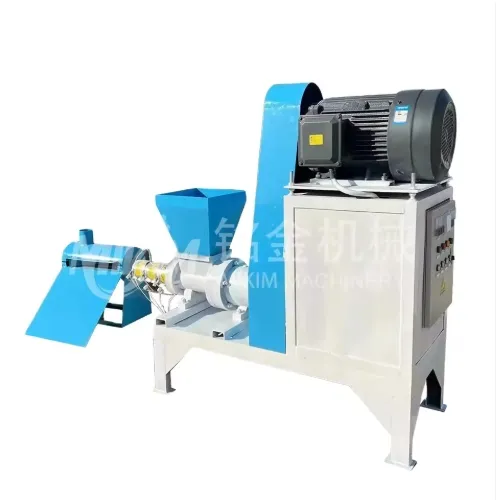

Sawdust Wood Charcoal Brick Briquette Press Machine
Capacity: 200-350kg/h
Power: 18.5-22kw
Briquette Diameter：50-100mm
Application: used for heating or BBQ (barbeque) to replace coal in many countries.
MOQ: 1 pcs
Lead time (days): 7-15
ODM/OEM: Available
Features
Products Description
Charcoal Briquette Machine, also known as Briquette Press or Wood Powder Molding Machine, produces various types including wood shavings charcoal briquette maker machines, rice husk briquette machines, and sawdust briquette machines. It can process raw materials with moisture content below 12% into solid pellets with central holes through high-temperature, high-pressure extrusion without adding any binders.
Wood Chip Brick Making Machine serves as the primary machinery for forming granular waste materials (length ≤5mm, diameter ≤3mm) such as bamboo, wood, fruit shells, straw (excluding rice straw and wheat straw), and other granular waste materials (length ≤5mm, diameter ≤3mm).
30-150kg/h biomass biofuel briquette press machine test in our factory
I am interested in this product
Please note:This sawdust brick press machine is the heart of the production line, but it is step 3 of 4. To get black BBQ charcoal, you need the following process:
Crushing: Turn wood waste into sawdust (<5mm).
Drying: Reduce moisture to the ideal 8%-12% range.
Briquetting (This Machine): Transform loose sawdust into high-density Pini-Kay briquette sticks (no binder needed).
Carbonizing: Put the sticks into a carbonization furnace to turn them into final charcoal
Characteristics of small coal biomass wood press briquette machine
1. The machine has the advantages of reasonable design, reliable quality, simple structure, convenient operation, small size, small occupation area, labor saving and electricity saving.
2. The auto-control electric heating device can adjust the dry humidity of the materials, ensure the stability and improve the working efficiency.
3. The main parts of the machine with a kind of special wear-resistant material can be continuously produce.
4. The machine is suitable for all kinds of raw materials of biomass briquetting with less energy consumption and high efficiency.
5. The machine now has improved adding one bearings into the traditional ones, which makes the machine more stable and durable.
Product Parameters
|
Model |
BC-50 |
BC-80 |
|
Briquette Diameter |
50mm |
80mm |
|
Capacity |
200-250 kg/h |
300-350kg/h |
|
Power (kw) |
18.5kw |
22kw |
|
Weight kg |
550 kg |
700kg |
|
Dimension mm |
1800*600*1600mm |
1800*700*1600mm |
|
raw material Moisture |
5%-12% |
5%-12% |
Maintenance Support:
Hard-facing Welding: We provide detailed video tutorials on how to repair the screw tip using wear-resistant welding rods, saving you thousands in replacement costs.
Spare Parts Kit: We recommend a Starter Maintenance Pack (2 Propellers, 3 Heating Rings, 1 Forming Sleeve) for uninterrupted production.
COMPARISON CHART
Raw Material Requirements
The materials requirements of machine to make sawdust briquettes:
1. The inlet size of raw materials should be less than 5mm. If the raw materials are bigger size, they must be crushed firstly.
2. The inlet moisture of raw materials must be less than 12%, otherwise, the outlet briquettes are easy broken and have crevice.So before briquetting, the wet materials should be dried.
►Besides the material size must less than 5mm, the humidity of the raw materials is controlled in 0-10%.
►Too wet or too dry will cause a bad forming effect.
►If the material too big, we will recommend you crusher according to your requirement.
►If your material moisture over 12%, we have a Airflow Dryer. After crushing, the material was delivered to the Wood Sawdust Hot Rotary Airflow Pipe Dryer , then it was sent to forming machine.

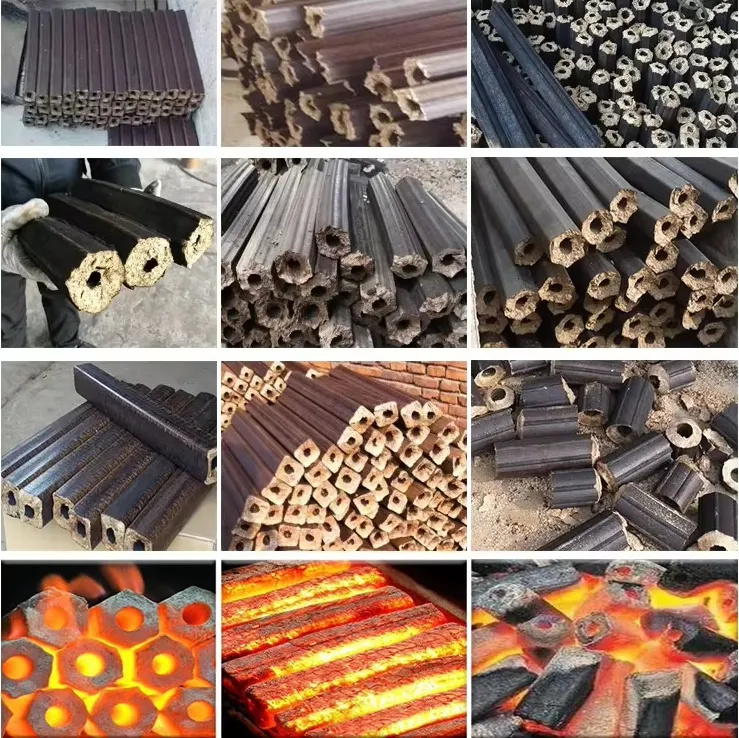

Final product
The sawdust produces free radicals, bifunctional under the hot and high pressure condition of the sawdust brick press machine.
The sawdust can be combined each other closely through a covalent bond.once formed, the combination will remain stable in case there is no external damage, more stable after cooling.
It can used as fuel, boiler heating, cooking, and other field.
Especially after carbonized, not only it has long burning time, but also smokeless, smelless, clean, widely used in barbecue market.
Is This Investment Profitable? (Estimated ROI Analysis)
"Investing in a sawdust charcoal making machine is an excellent way to turn waste into wealth. Here is a typical profit breakdown:
| Item | Cost/Revenue (Per Ton) | Notes |
| Raw Material (Sawdust) | $20 - $40 | Varies by region |
| Electricity & Labor | $15 - $25 | Based on 15kW/h |
| Total Production Cost | $35 - $65 | Estimated |
| Selling Price (Pini-Kay) | $150 - $250 | International Market Avg |
| Net Profit | $85 - $185 / Ton |
Most of our clients recover their machine investment within 2-4 months of full operation."
Customer Case
FAQ
Q: Can rice husk and peanut shells be used in a sawdust charcoal briquette machine?
A: Yes! This sawdust charcoal rod making machine is a versatile biomass densification tool. While sawdust is most common, it works perfectly for rice husks and crushed coconut shells.
Q: Why is the moisture content so important (8-12%)?
A: If it's too wet, the steam will cause 'explosions' in the forming sleeve; if it's too dry, it won't densify. Our machines include a temperature controller to help manage this.
Q: What is a "Pini-Kay" briquette?
A: It is the international name for the hollow-center wood briquette produced by screw presses. It is the premium choice for high-end BBQ charcoal.
A: Yes, we will test every machine and production line before delivery and send you the working video. You can also inspect the goods on site before delivery.
Q.Do you have stock for all items?
A:In general, we have some stock, while if you need a bulk order, we still need time to produce it. Of course, we will inform all details you before your payment.
Q: How about the price?
A: We are manufactory, and we can give you lower price than those trade companies. Besides,customers from Alibaba can get a discount.
If you have concerns and worries that are not mentioned here, please send an e-mail or call us with your inquiries. We will answer them wholeheartedly.
