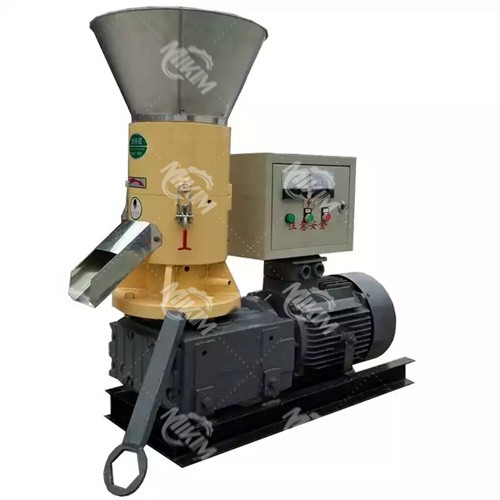

High Quality Biomass Pellet Machine

The biomass pellet machine is easy to operate and has high quality finished products.

Send Inquiry

Features

Products Description

The pressure inside the biomass pellet machine varies depending on the raw materials and machine models, usually between a few and tens of MPa, and needs to be determined based on the equipment design, raw material type and process conditions.
As an important equipment for converting biomass raw materials into high-density pellet fuel, the internal pressure of the biomass pellet machine is one of the key factors affecting the quality of pellet molding. So, how much pressure is needed inside the biomass pellet machine, and how does this pressure affect production?

Product Parameters

Model	Capacity	Power	Dimensions	Weight
MK-250	100-200kg/h	15kw	11204401060mm	400kg
MK-300	200-300kg/h	22kw	12805601220mm	700kg

Product Analysis

When the biomass pellet machine is working, it compresses the loose biomass raw materials into pellets with a certain density through mechanical force. In this process, internal pressure plays a vital role. Sufficient pressure can ensure that the raw materials are tightly combined to form a stable pellet structure, while improving the strength and density of the pellets. On the contrary, if the pressure is insufficient, the pellets may become loose, fragile, or even unable to form.

1. Raw material characteristics: Different types of biomass raw materials have different physical and chemical properties, such as moisture content, fiber length, hardness, etc., which directly affect the pressure requirements in the pellet machine. For example, raw materials with high moisture content will produce greater friction during compression, thereby increasing the required pressure.
2. Equipment design: The design structure of the biomass pellet machine, including mold shape, compression ratio, feeding method, etc., will affect its internal pressure. Reasonable equipment design can reduce energy consumption, improve production efficiency, and ensure the quality of pellets.
