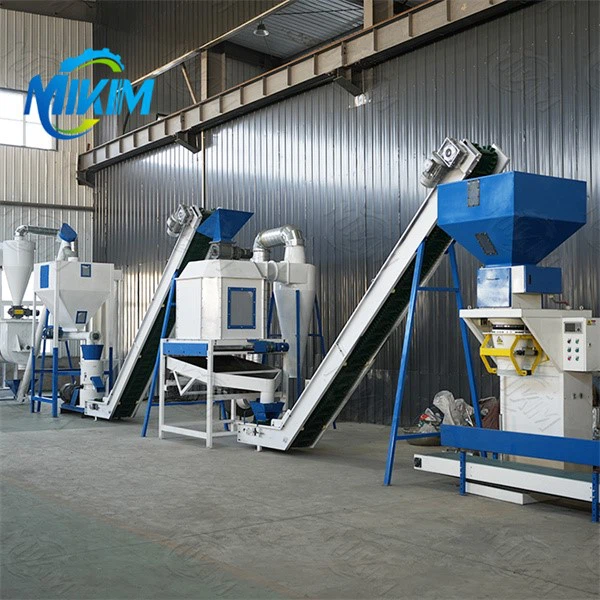

How Does A Biomass Pellet Making Line Produce Pellet Fuel?



The biomass wood pellet production line is an environmentally friendly project that processes various biomass waste materials, such as straw, branches, and rice husks, into solid fuel pellets. The production process includes wood chipping, sawdust crushing, wood chip drying and storage, pellet extrusion, and pellet packaging.



The biomass pellet production line's output can be customized according to customer needs. The wood pellet production line is environmentally friendly because it recycles large amounts of biomass waste, conserving resources and protecting the environment. The finished biomass pellets have a high density and calorific value and can be used directly as fuel.





Model	Power	Mold Hole	Capacity for industrial solid	Capacity for biomass	Pellet size(mm)
MKYK-36	45kw	36	0.5-1.0	1.0-1.5	32*32*50-100
MKYK-48	75kw	48	1.0-1.5	1.5-2.5	32*32*50-100
MKYK-72	110kw	72	2.0-2.5	2.5-3.5	32*32*50-100
MKYK-90	132kw	90	2.0-2.5	3.5-5.0	32*32*50-100
MKYK-120	200kw	120	3.0-4.0	4.0-6.0	32*32*50-100
MKYK-150	250kw	150	4.0-6.0	6.0-10.0	32*32*50-100



In our daily life, there is a large amount of biomass waste that can be used to process wood pellets. The common raw materials for processing wood pellets are as follows:



- Agricultural residues. This includes cotton stalks, wheat straw, rice straw, corn stalks, corn cobs, and other cereal straw.
- Sawdust. Wood chips are excellent for pelleting. Sawdust-based biomass pellets produce a stable yield, smooth pellets, and high hardness.
- Small wood shavings. Because wood chip pellets are large and difficult to fit into a wood pelletizer, they must be crushed in a sawdust grinder before use.
- Sanding powder used in wood panel and furniture factories. Sanding powder has a low specific gravity and is prone to clogging. It is recommended to mix wood chips with pellets, with a ratio of approximately 50% each.
- Wood panel and wood chip offcuts. These materials must be crushed before use.
- Fibrous materials. The fiber length of this material must be controlled, generally no longer than 5mm.





1. Raw Material Storage System
Mainly used to store materials to prevent them from becoming damp and deteriorating, or from clumping and clogging pipelines. It also regulates the moisture content of materials to produce qualified products. It also allows for screening and grading of materials according to different product requirements.
2. Pulverization Unit
Solid granular raw materials are processed through mills and other mechanical equipment into powder products that meet particle size requirements for use in subsequent processes.
3. Drying Unit
This unit removes moisture and reduces the moisture content, thereby reducing heat consumption and smoke emissions. It also improves product quality and production efficiency, and also protects the environment.
4.There will definitely be a small amount of unqualified products. The screening equipment is to screen out qualified particles and remove unqualified particles.
5.Bucket elevator conveyor
In the pellet production line, the bucket elevator is used to transport materials vertically.







Can rice husks be used to make pellets?
Yes, of course. Rice husks can be used to make pellet fuel. However, it's important to ensure the husks maintain a certain moisture content, around 10%.

What are the uses of wood pellets?
Wood pellets are typically used directly as fuel. These fuel pellets are often used to heat factory boilers and homes. Alternatively, wood pellets can be carbonized in a carbonizer to make charcoal pellets.



For more information on process design, equipment layout, plant construction plan, single machine equipment quotation, turnkey quotation, etc., please feel free to contact us.
